Alpha 250k Pan Pot, Solid Shaft, 1/4" Thread Length

A pan pot blends between two pickups and is used on two-pickup instruments in place of a pickup selector switch, as on a Jazz Bass. The center detent lets you feel the halfway point, where both pickups are balanced.

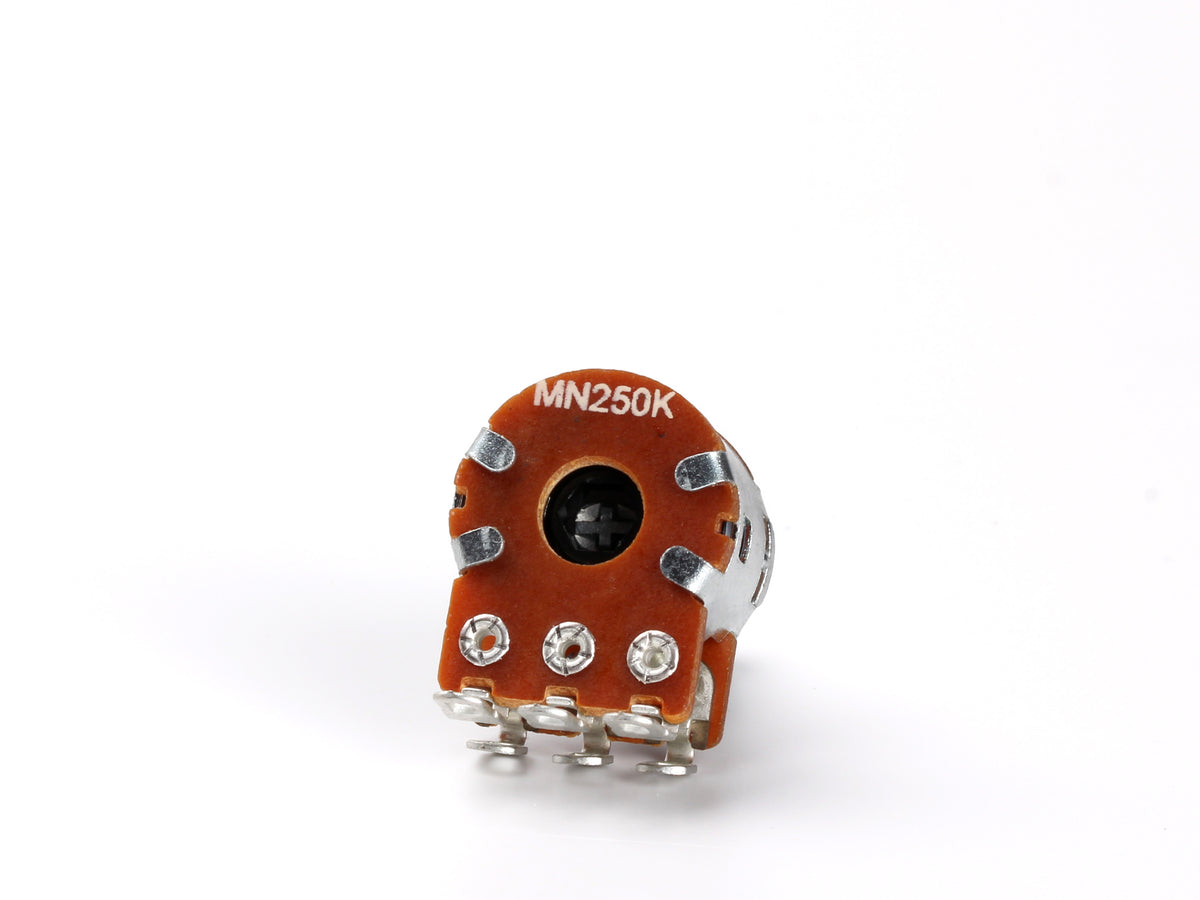

Mounting hardware included (shown in the last photo).

Specs

• 250k pan pot with center detent
• Solid shaft (for setscrew knobs)
• 3/8-32 SAE bushing thread

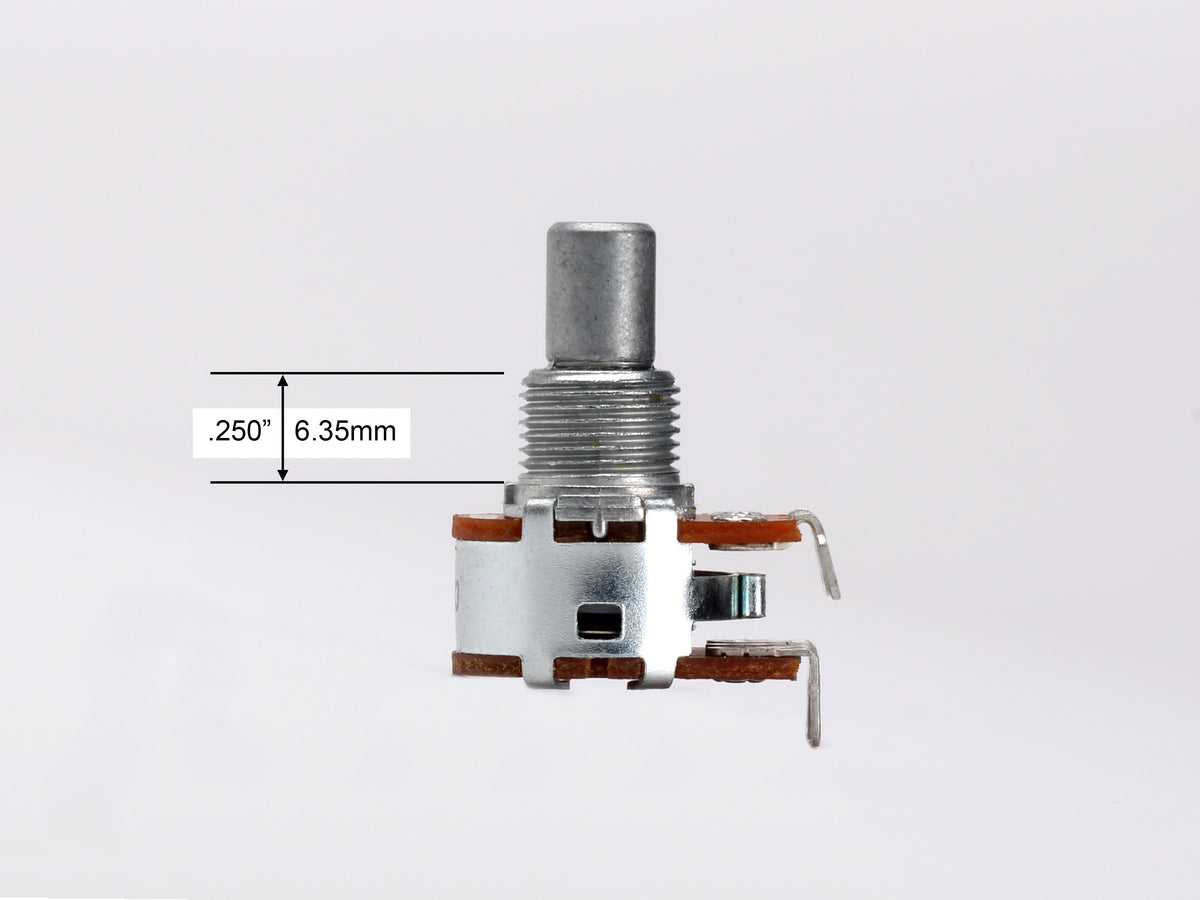

• 1/4" thread length (mount to pickguard or control plate)
• 17mm body diameter

Details

Be advised: this pot has a 1/4" (6.35mm) solid shaft, designed for knobs held on with a setscrew. Most imported guitars with setscrew knobs use metric pots with 6mm shafts, and their knobs won't fit a 1/4" shaft unless the hole in the knob is enlarged to 1/4".

While this might seem like no big deal, in practice it's not something the average consumer will find trivial. A drill bit that grabs a metal knob and spins it in the hand risks cutting the hand, and especially if it has a setscrew sticking out on one side. Unless you have a drill press and a way to hold the knob from spinning without marring it, you might find it advisable to buy new knobs. All of the Fender and Callaham setscrew knobs we sell will work, they all have 1/4" bores and are designed for CTS pots with solid shafts.
