Callaham Premium Upgrade Kit, Mexican Standard Strat

• Country of Manufacture: USA
• Pop-in "64" arm included (other lengths optional - see image above)
• String Spacing: 2-1/16" (2.062" / 52.4mm)
• Enhanced Vintage block, w/ 10-32 Thread
• Fits Fender Standard Stratocaster; Highway 1 Stratocaster (2006 and later); Classic Player Stratocaster

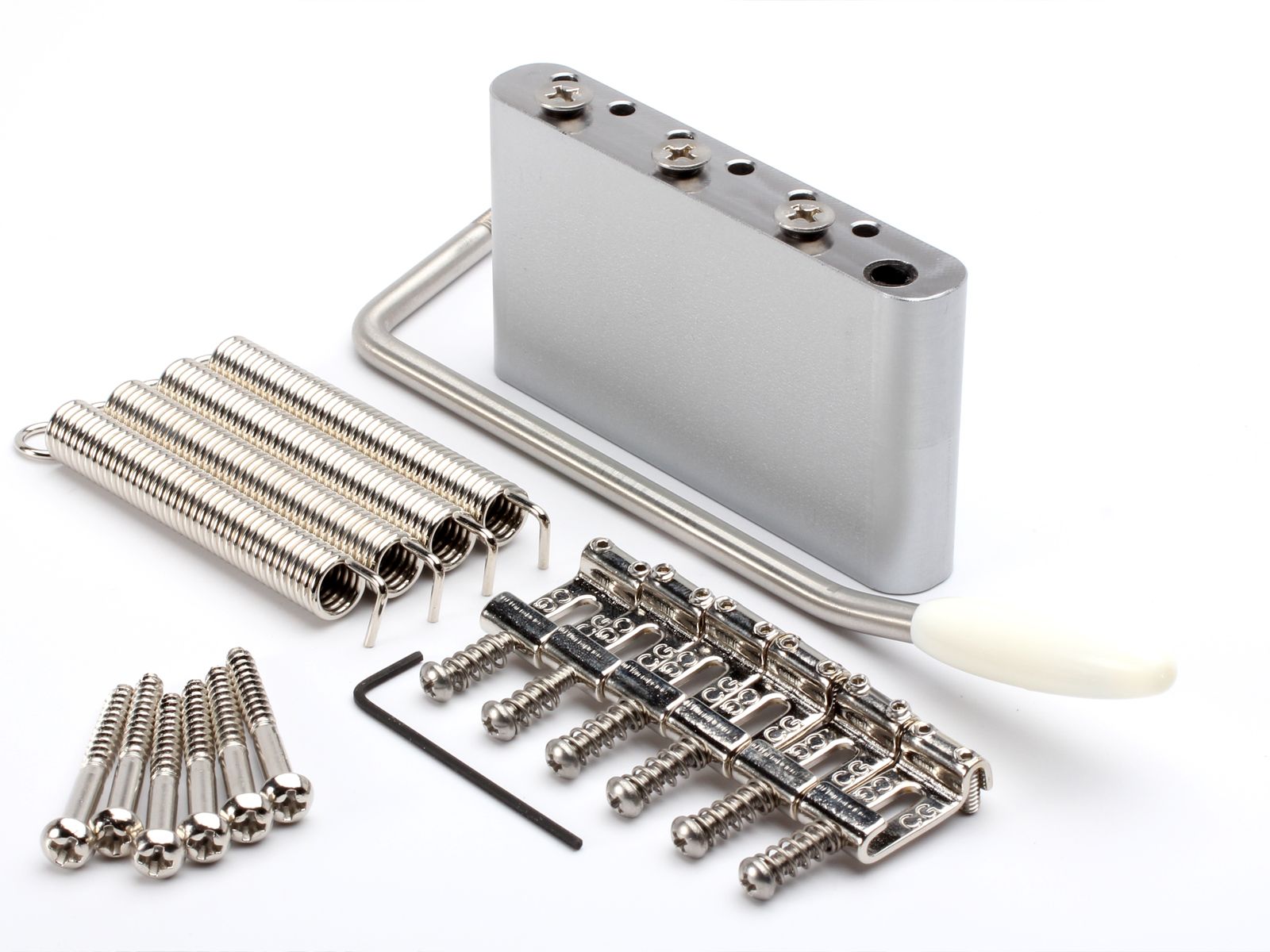

This kit includes all the parts shown in the image above. It gives you everything you need to completely upgrade the Fender tremolo, retaining only the stock top plate.

BLOCK

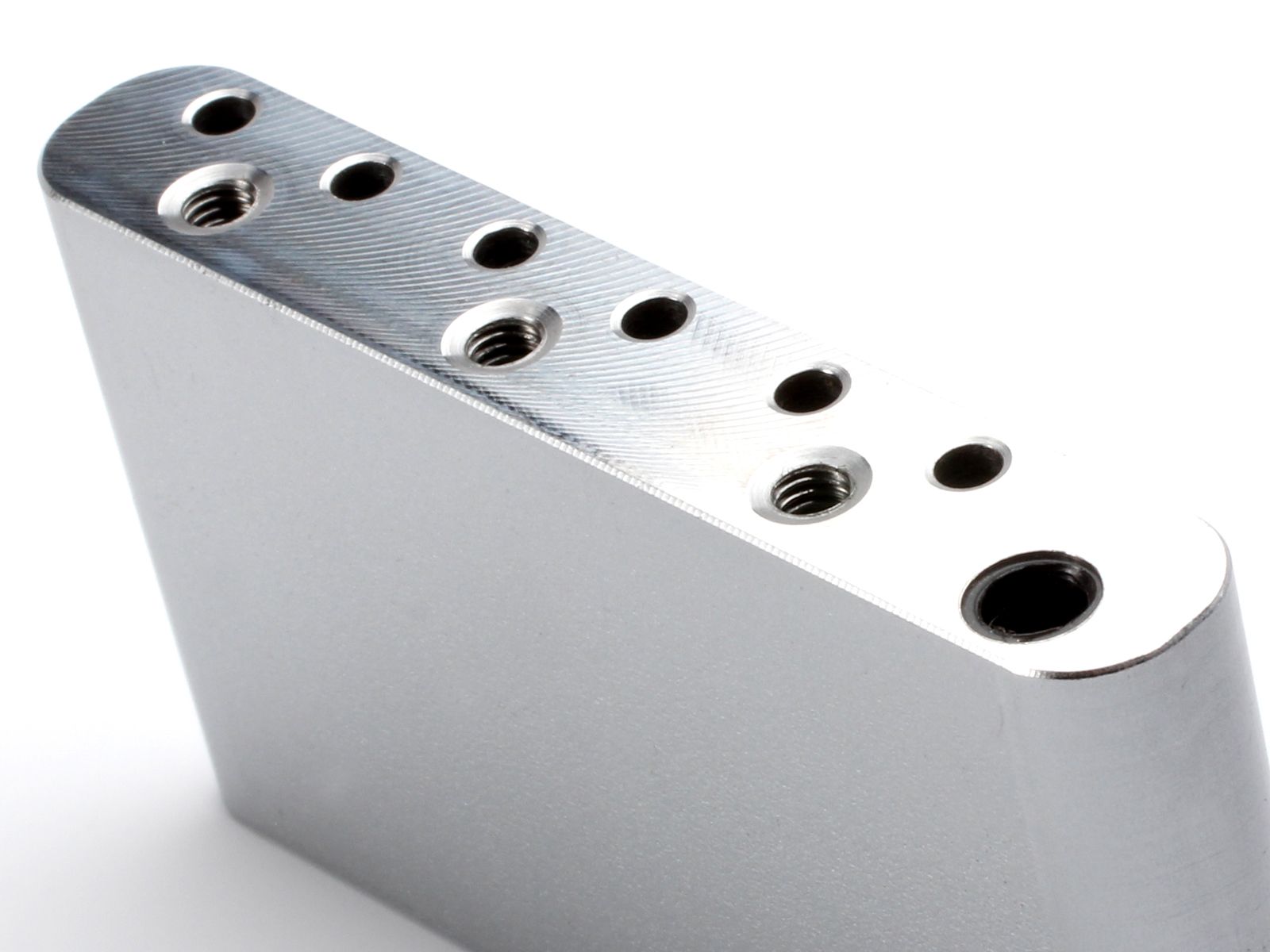

The blocks in all Callaham trems are made of 1018 cold-rolled steel like the vintage originals, which contributes to the sustain and harmonic content that has made these guitars legendary. Replacing a block made of inferior materials (zinc, leaded steel, sintered steel) with one of Callaham's blocks will get you one step closer to those $30,000 originals. All have a precision-machined top surface that is free of paint to ensure solid metal-to-metal contact with the top plate, for optimal tone.

Callaham's blocks are machined with shallow string ball holes, like the originals.

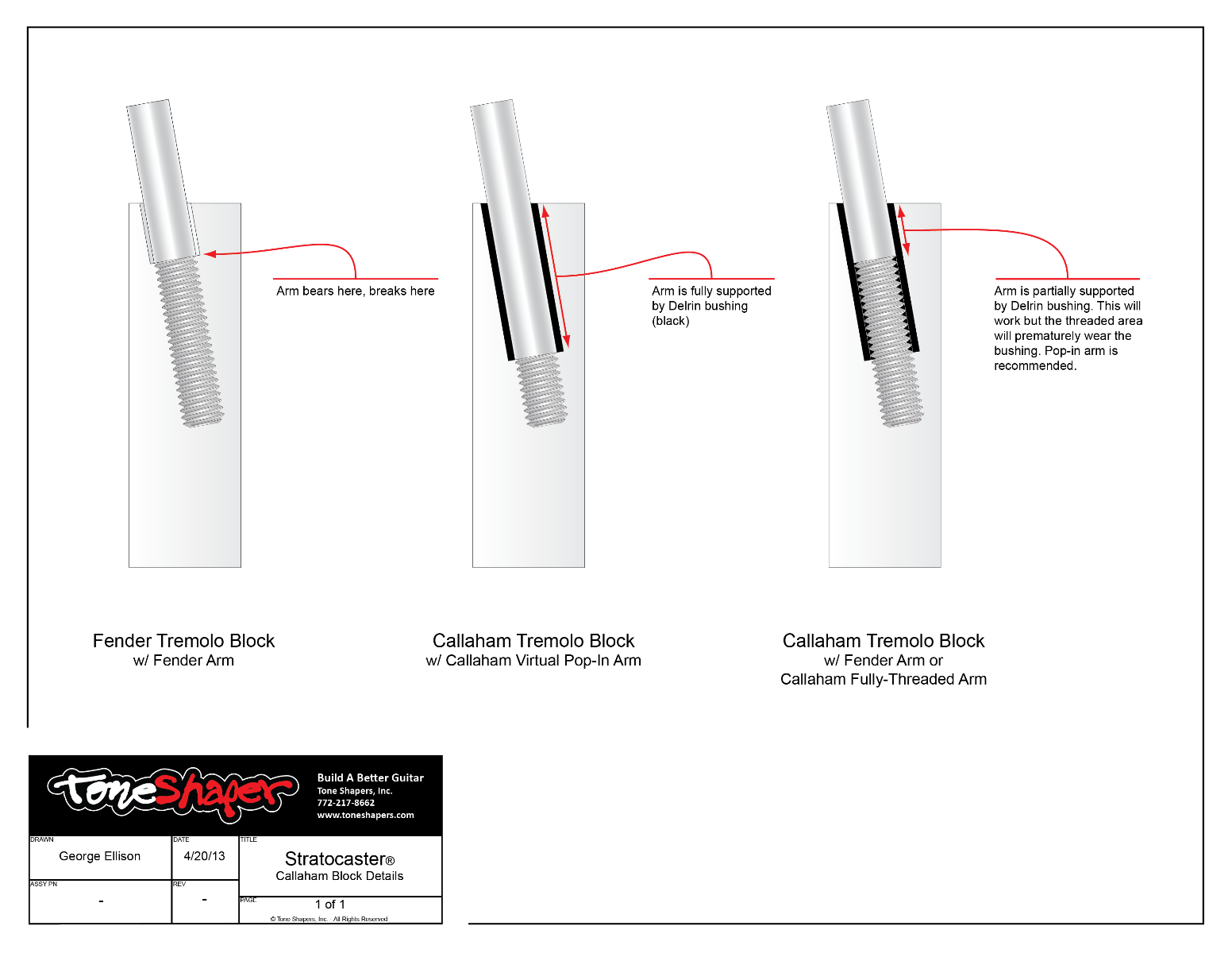

And all Callaham blocks come with a precision-reamed Delrin insert in the arm hole (Callaham's Enhanced Vintage design), which allows the tremolo arm to fit snugly and be free of play, without requiring a spring in the hole, as Fender's threaded blocks do. This gives you the best tremolo feel available, and without worrying about losing springs (in case you're unaware of it, new Stratocasters ship with a round label over the hole in the tremolo - the label's purpose is to prevent the tiny spring from falling out and being lost).

This feature also reduces the risk of broken trem arms. With traditional threaded block designs, when you use the arm you create forces that are concentrated right at the threaded portion of the arm - its weakest point. This is where arms typically break. Callaham's solution of leaving this bearing area of the arm unthreaded - coupled with the Delrin bushing that the arm bears against - virtually eliminates broken arms.

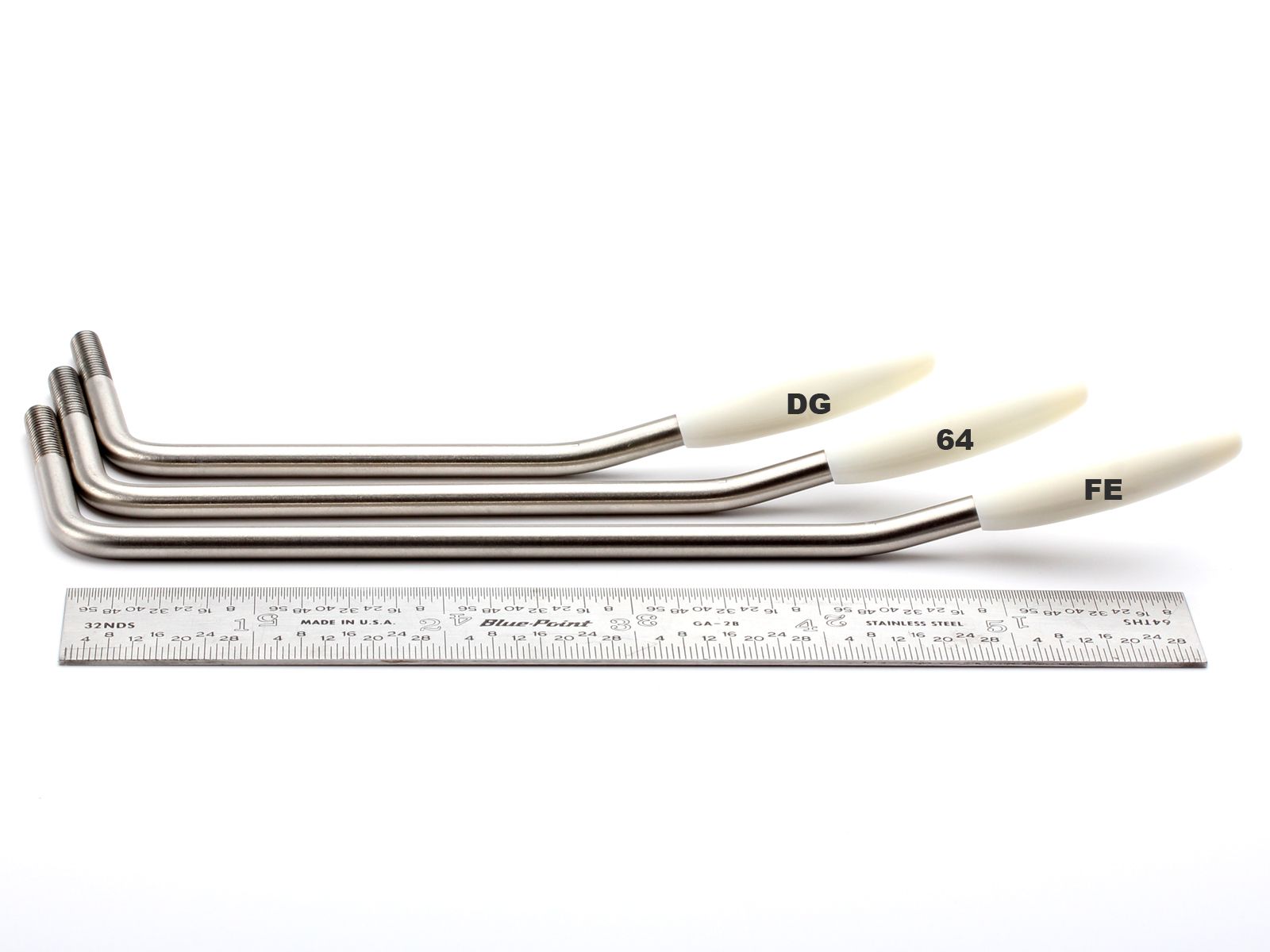

We include the "64" length arm by default; if you would prefer a different length, then please let us know at time of purchase via email, or add a comment to your payment via PayPal. We stock Callaham's arms with parchment tips only. We have Fender arm tips available in various colors at additional cost.

SADDLES
Callaham's saddles are designed from original pre-CBS saddles, with some improvements. Callaham has slightly lengthened the string slot as compared to pre-CBS saddles, so that the strings will not bind and bend against a sharp edge before going over the saddles, which reduces string breakage. Fender's current production saddles have their slots moved too far to the rear, causing string breakage and loss of downward pressure on the saddle, hurting both sustain and tone.

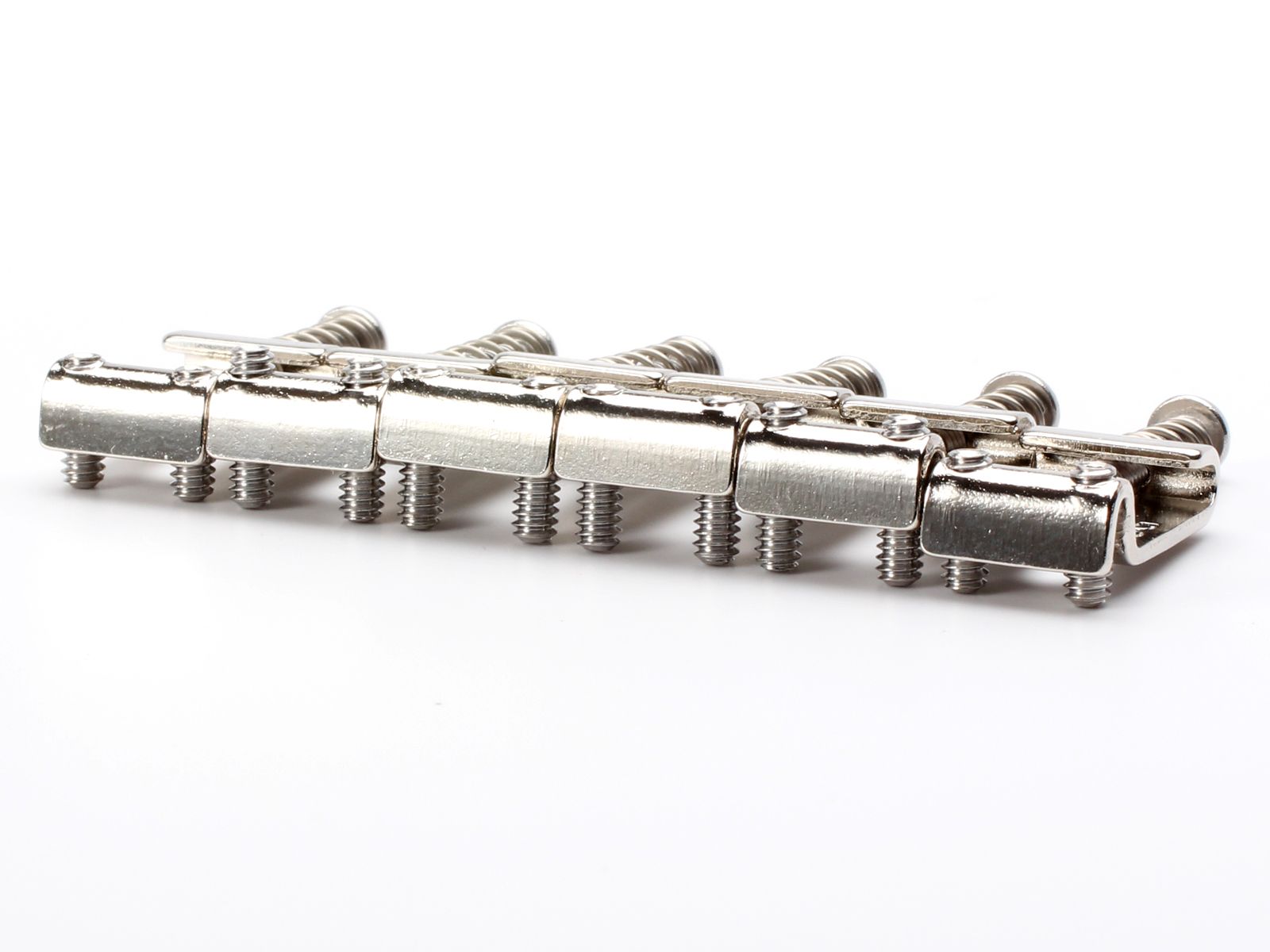

Callaham's saddles, like pre-CBS saddles, have threads running the entire height of the front skirt of the saddle. Fender's current production saddles have fewer threads and a shorter front skirt. Consequently, the Callaham height-adjustment screws are held more securely, with more thread contact, maintaining sustain and saddle stability.

There is a commonly-held belief that pre-CBS saddles were hardened, but Callaham states that every pre-CBS saddle they've tested measures on average only 50 Rockwell B. Callaham has chosen steel with a hardness of 95-98 Rockwell B for their saddles. Further, the steel work-hardens in the making of the saddle and is well over 115 Rockwell B where the string crosses.

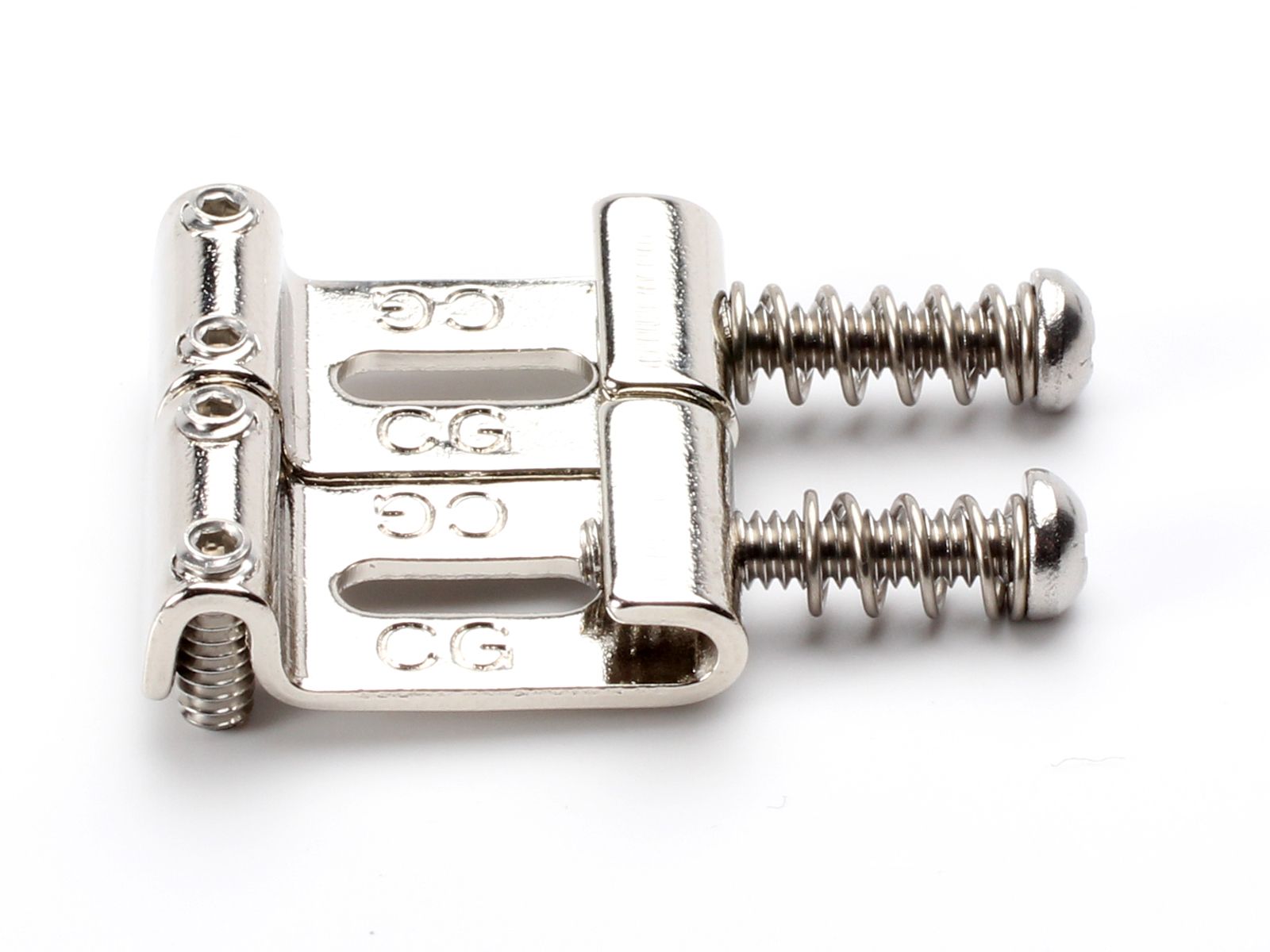

Note that the Callaham saddles come with different spring lengths and height-adjustment screws, it's important that you install them in the right places:

• E: short spring, short screws
• A: short spring, long screws
• D: long spring, long screws
• G: long spring, long screws
• B: long spring, long screws
• E: long spring, short screws
