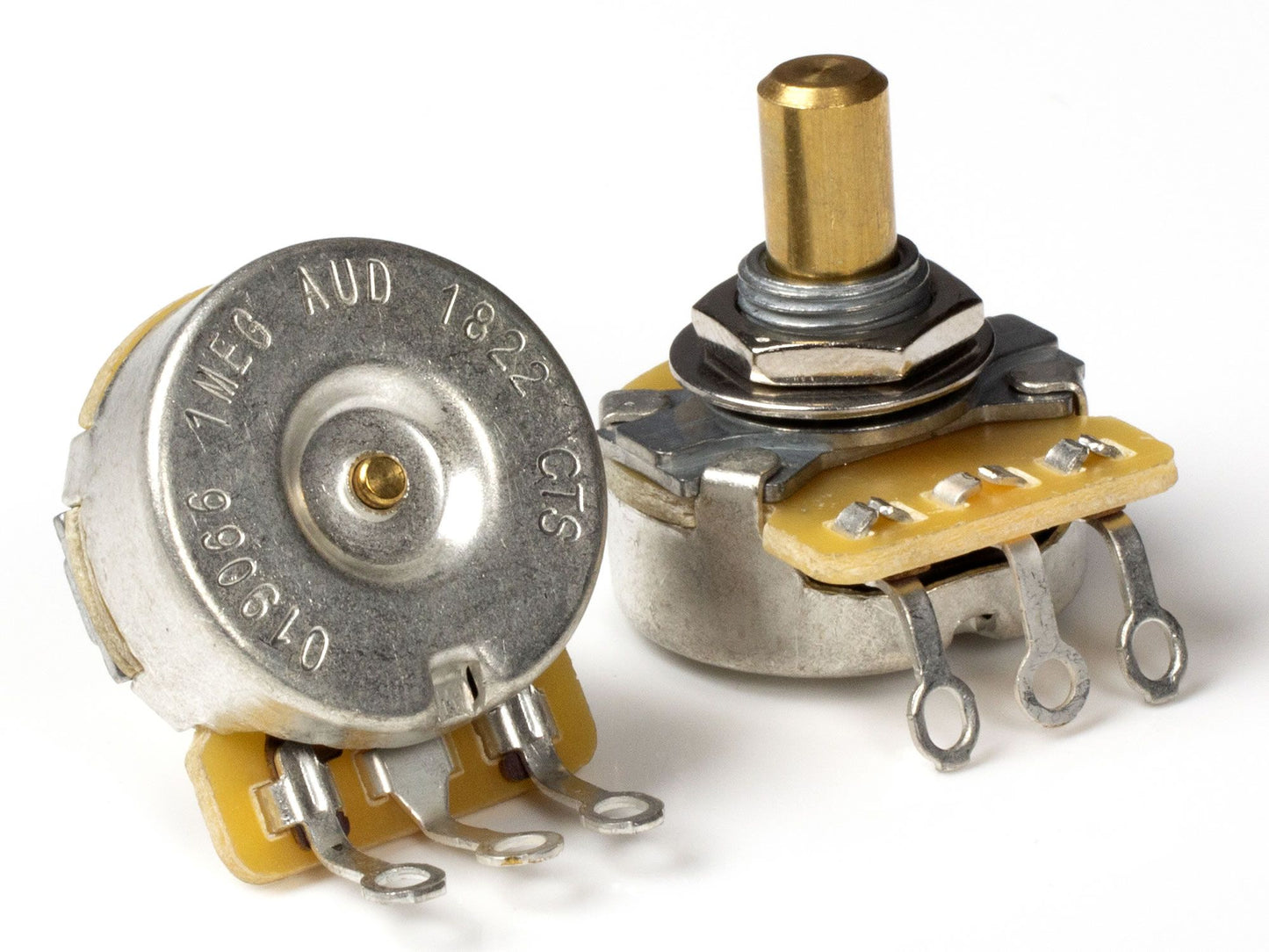

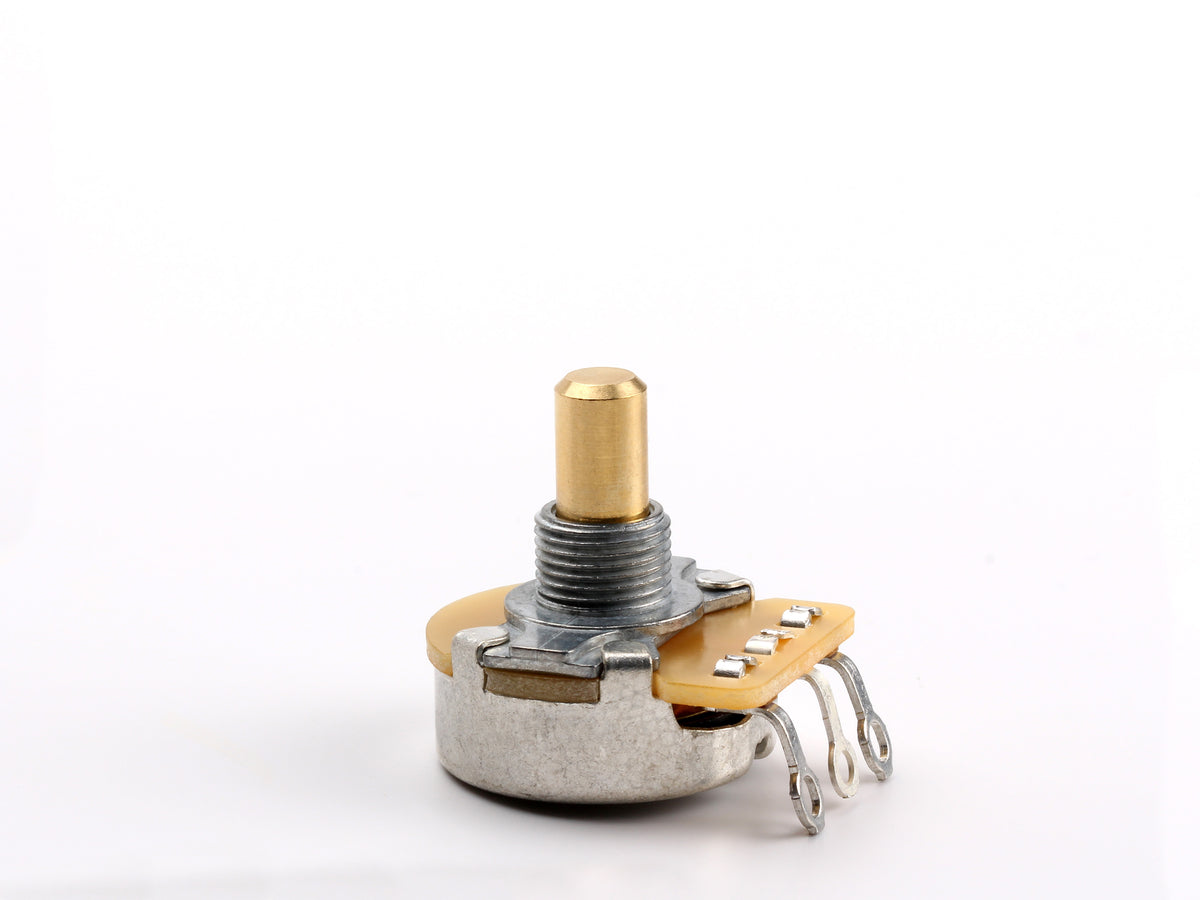

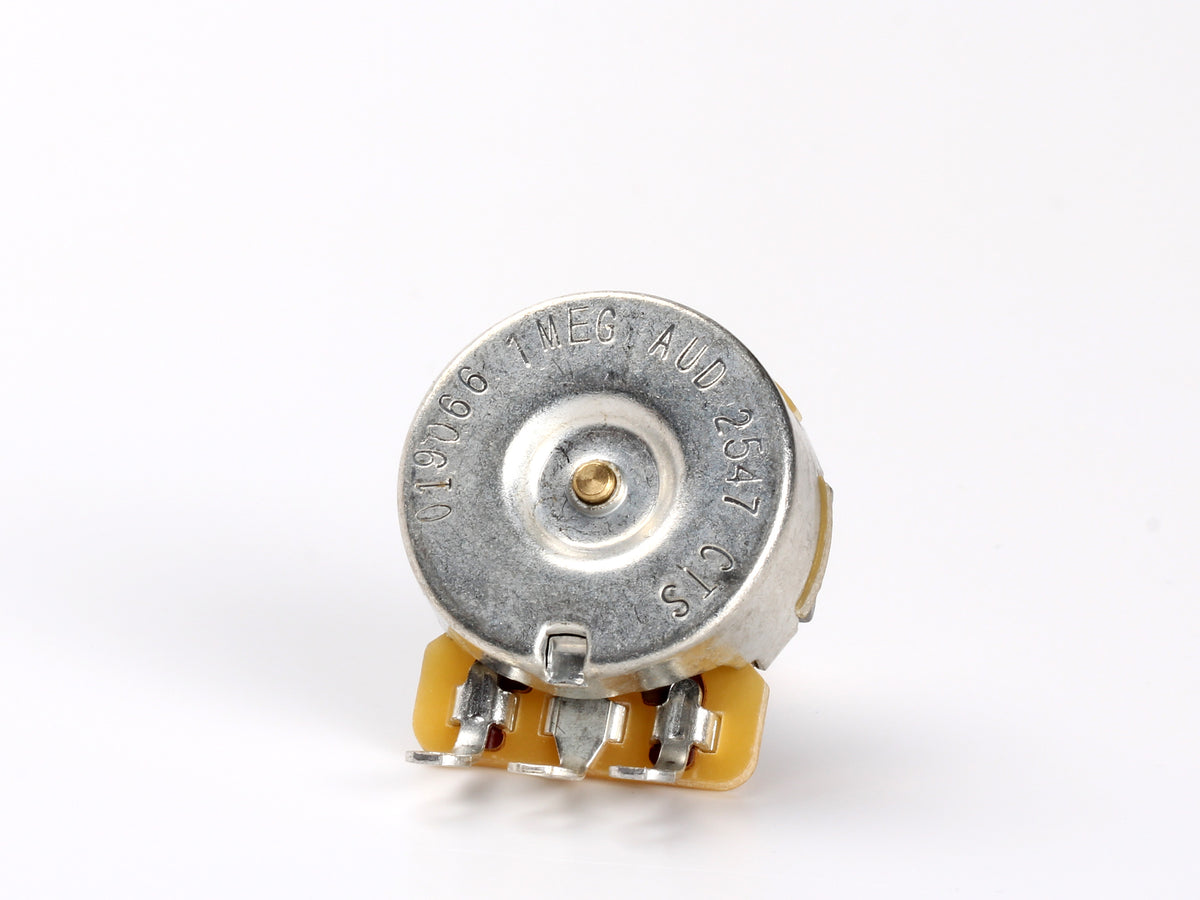

CTS 1M Audio Pot, Solid Shaft, 1/4" Thread Length, for Jaguar

This is the pot used for both the master volume and master tone controls in Fender's USA Vintage Reissue Jaguars. We buy these pots directly from Fender, they're the right part for this application if vintage wiring is desired.

Mounting hardware included (shown in the last photo).

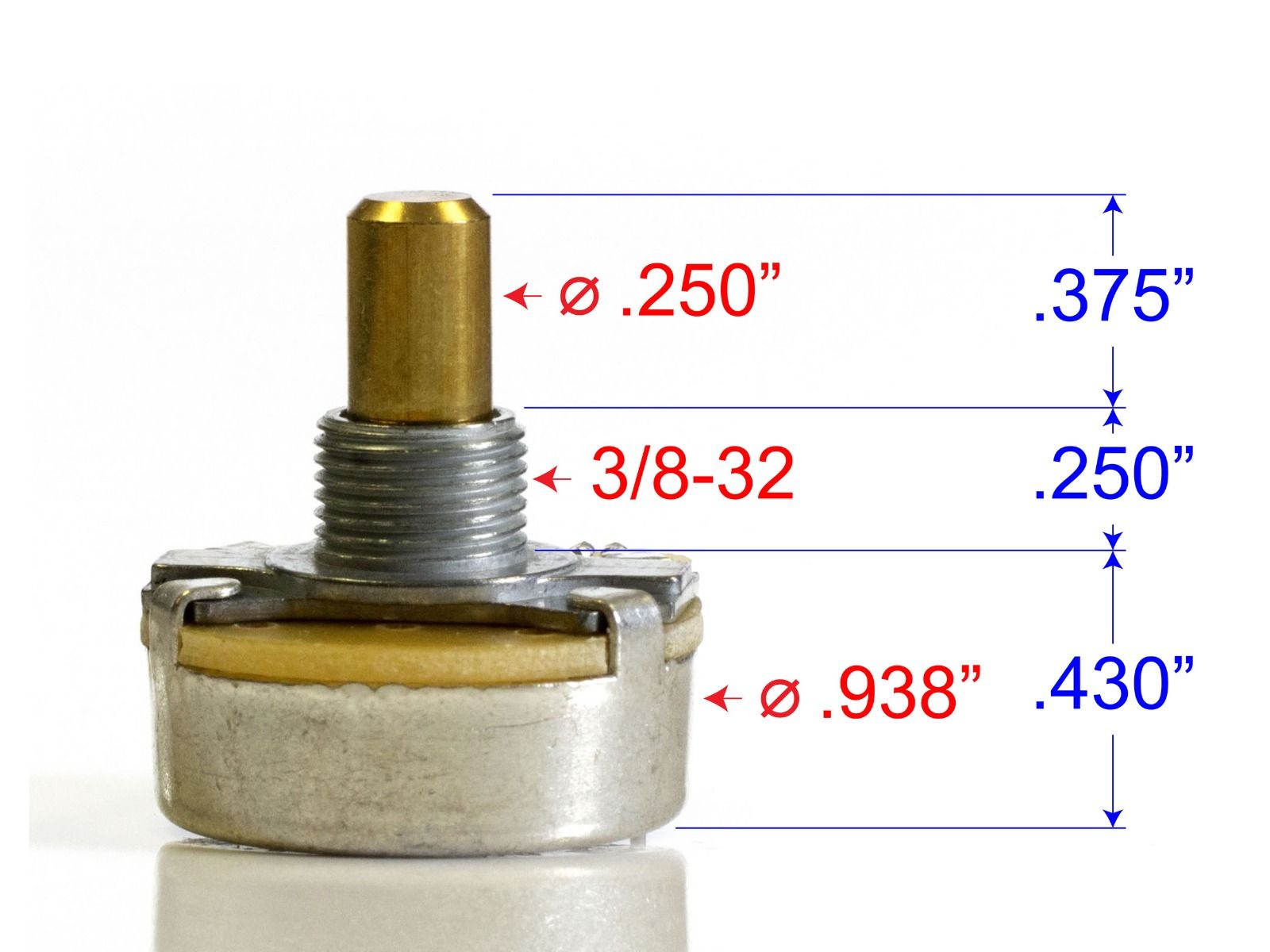

Specs

• 1 meg audio taper (logarithmic)
• Solid shaft (for setscrew knobs)
• 1/4" shaft diameter
• 3/8-32 SAE bushing thread

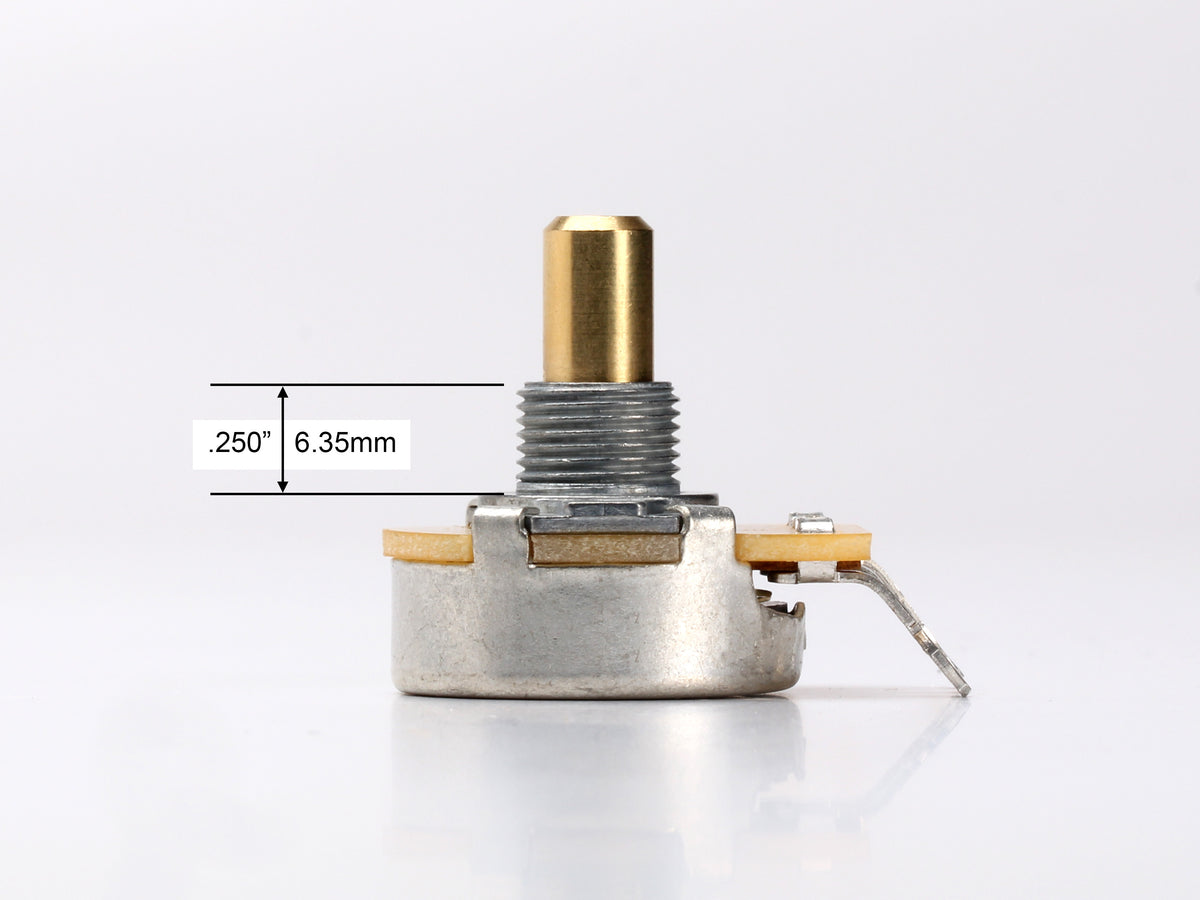

• 1/4" thread length (mount to pickguard or control plate)
• Low torque (dimpled back - turns easily)
• 15/16" body diameter

Details

Be advised: this pot has a 1/4" (6.35mm) solid shaft, designed for knobs held on with a setscrew. Most imported guitars with setscrew knobs use metric pots with 6mm shafts, and their knobs won't fit a 1/4" shaft unless the hole in the knob is enlarged to 1/4".

While this might seem like no big deal, in practice it's not something the average consumer will find trivial. A drill bit that grabs a metal knob and spins it in the hand risks cutting the hand, and especially if it has a setscrew sticking out on one side. Unless you have a drill press and a way to hold the knob from spinning without marring it, you might find it advisable to buy new knobs. All of the Fender and Callaham setscrew knobs we sell will work, they all have 1/4" bores and are designed for CTS pots with solid shafts.
