CTS 500k/250k Concentric Pot, 1/4" Thread Length, for Jazz Bass

A concentric (stacked) pot gives you two controls in the space of one, each turned by its own knob. This 500k/250k version is used in stack-knob Jazz Bass wiring. The 500k section is the one nearest the shaft end of the pot; the 250k section is behind it.

The best guitar pots we're aware of are made by CTS - this is the brand that pretty much every American guitar company has used for decades. We order most of our pots directly from CTS and have them made to our specs.

Mounting hardware included (shown in the last photo).

Specs

• Two sections: 500k and 250k, audio taper (logarithmic)
• Solid concentric shafts (for setscrew knobs), .188" and .266" diameter
• 3/8-32 SAE bushing thread

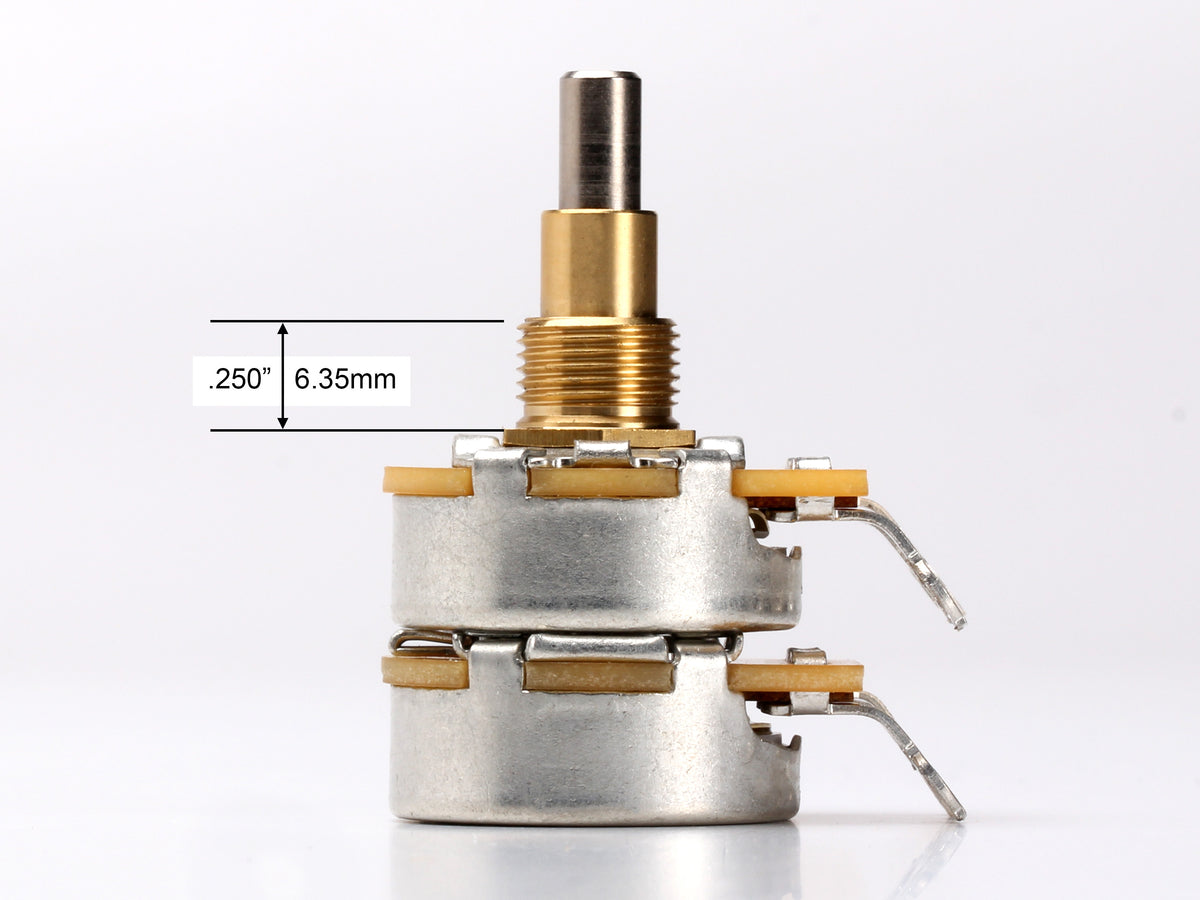

• 1/4" thread length
• 15/16" body diameter

Details

You'll need concentric knobs made for CTS pots; the Fender concentric knob sets we sell fit this pot.
