CTS Pot, 500k / 500k Audio, Concentric
CTS Pot, 500k / 500k Audio, Concentric
Couldn't load pickup availability
- Both Sections: 500k Audio Taper (Logarithmic)
- Solid-Shaft (for Setscrew Knobs)

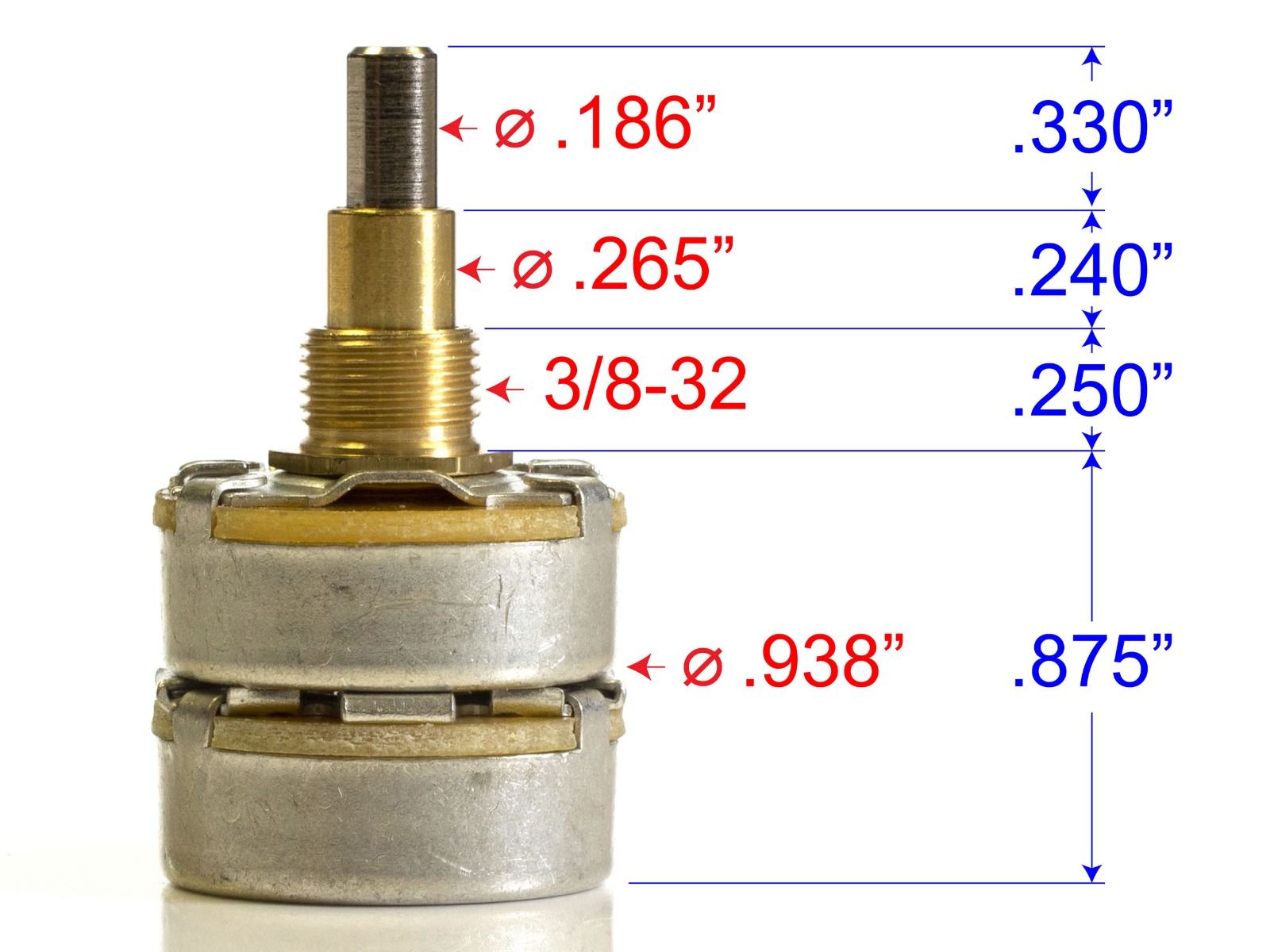

- .186" Upper Shaft Diameter
- .265" Lower Shaft Diameter
- 3/8-32 UTS Bushing Thread
- .250" Bushing Length
- High Torque

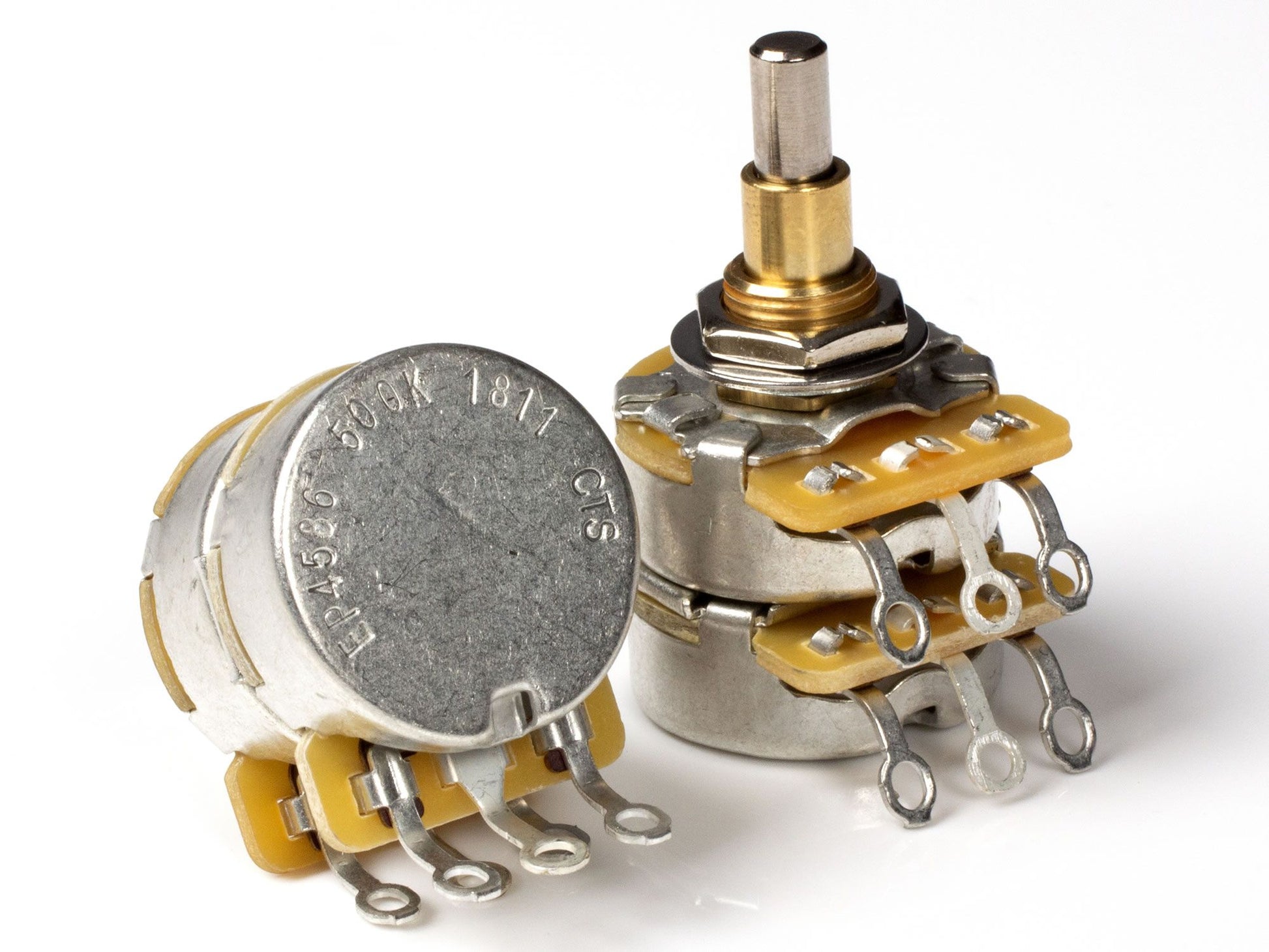

We sell these pots individually, the image shows two so that you can see more detail.
The best guitar pots we're aware of are made by CTS - this is the brand that pretty much every American guitar company has used since the 1940s. This concentric pot gives you two controls in the space of one. An example of its use would be as the volume control in a two-humbucker guitar, where you would have independent control of each pickup, but using only one control location.
You'll need special knobs for this pot, and we stock a couple that we buy from Fender that are made specifically for CTS pots (many concentric knob sets won't fit this pot, as they're made for imported pots with other shaft diameters).
Customer Reviews
Awesome pots. I've installed these on several of my guitars that have 2 humbuckers but only one volume and one tone control for both pickups. This way I have volume and tone controls for each pickup, and no new holes to drill.
The parcel was delivered on time. Thank you very much.
Fast service, easy order, I’ll definitely order here again!
These pots work well and were shipped in a timely manner but due to the shaft diameters i can't find knobs to fit them. That is the reason i give them 3 stars
