SKU:

  • CTS Pot, 50k Linear, Mini
  • Dimensions - CTS Pot, 50k Linear, Mini
1 3

CTS

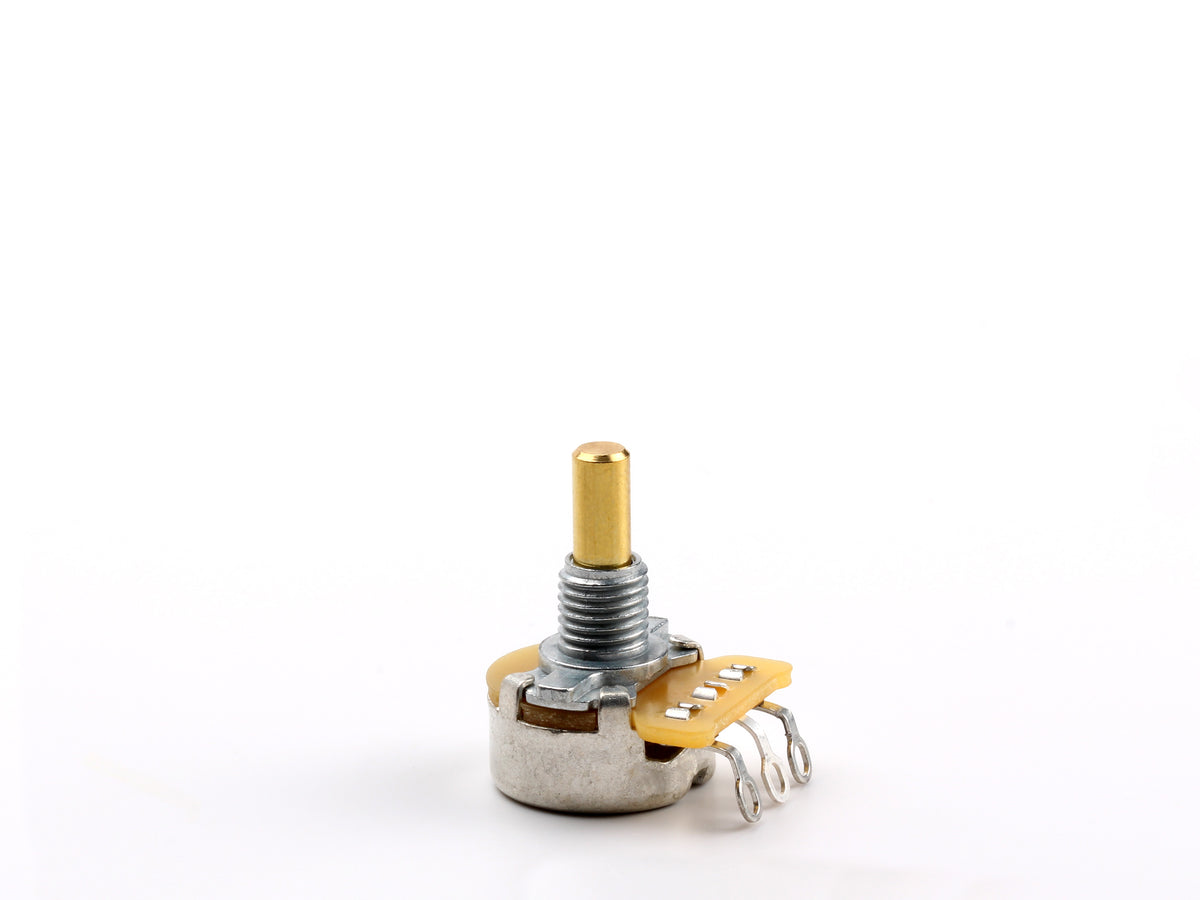

CTS 50k Linear Pot, Mini, for Jazzmaster/Jaguar

CTS 50k Linear Pot, Mini, for Jazzmaster/Jaguar

€7,95 EUR
€7,95 EUR
Sale Sold out
Shipping calculated at checkout.
  • 50k Linear Taper
  • Solid-Shaft (Roller Knobs)
  • .156" Shaft Diameter
  • 1/4-32 UTS Bushing Thread

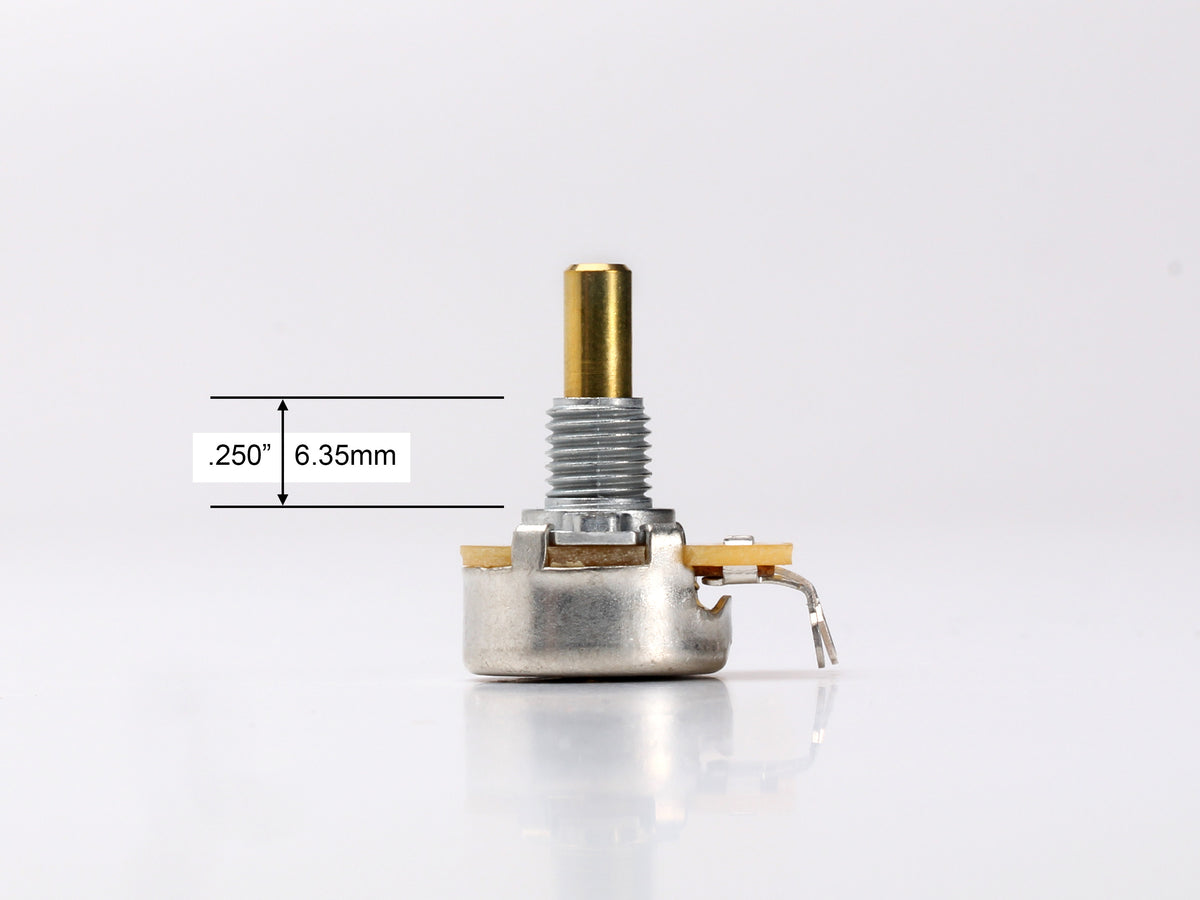

  • .250" Bushing Length
  • Mini-Pot

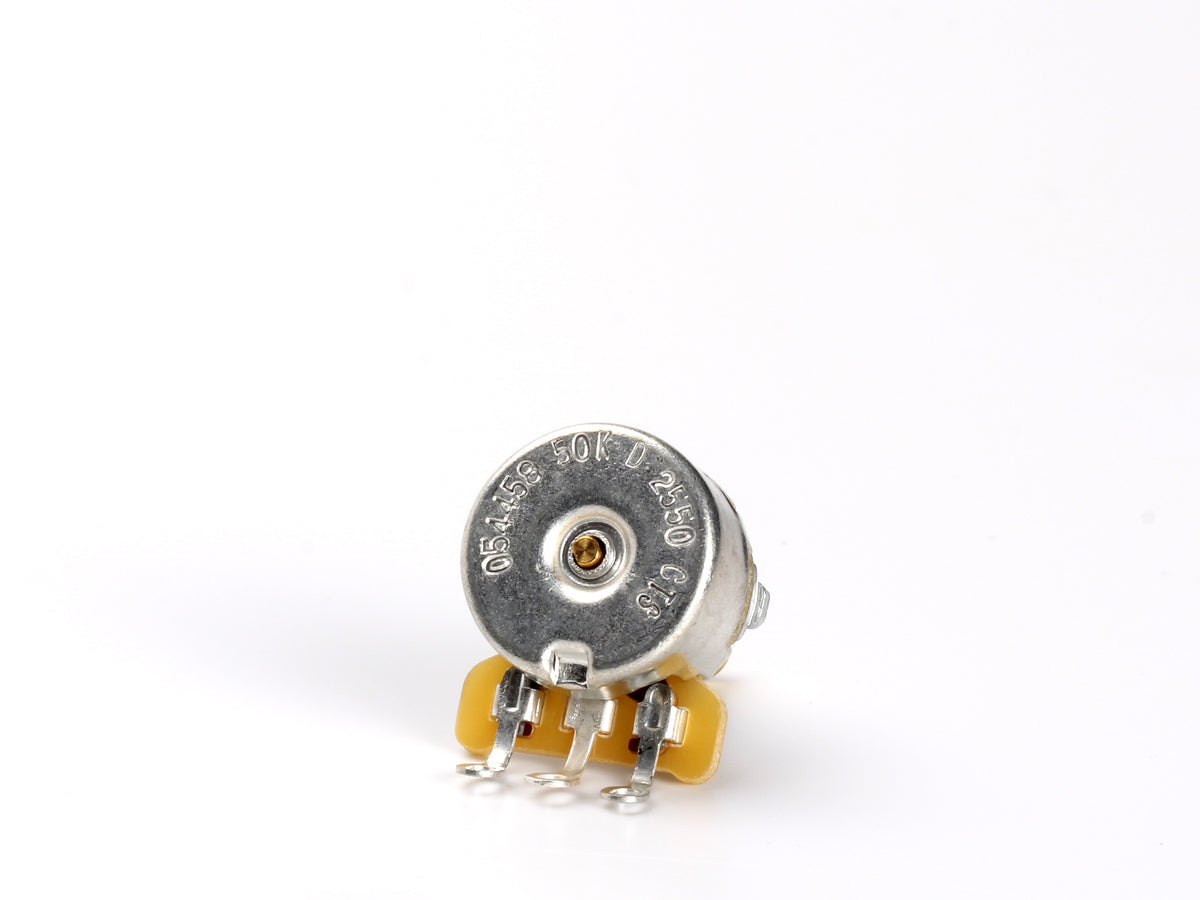

We sell these pots individually, the image shows two so that you can see more detail.

Both Fender's Jazzmaster and Jaguar were originally wired with a separate circuit for the neck pickup, which provided a volume and tone control for the neck pickup that was separate from the master volume and tone controls. This neck pickup circuit was controlled using roller knobs that are attached to mini pots.

This is the mini pot used for tone control, it's the right part for both the Jazzmaster and Jaguar when vintage wiring is desired.

View full details

Customer Reviews

Based on 2 reviews
100%
(2)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
J
Jeff Brown (iceratz-5)
USA pots rule!

These are great potentiometers specially for upgrading a Fender Jaguar or Jazzmaster rythum circuit.
However, you need to be aware of the fact the shaft diameter is smaller than all overseas models and you will need to also replace the roller knobs with US components. It's worth it !

A
Alberto

Worked perfectly
