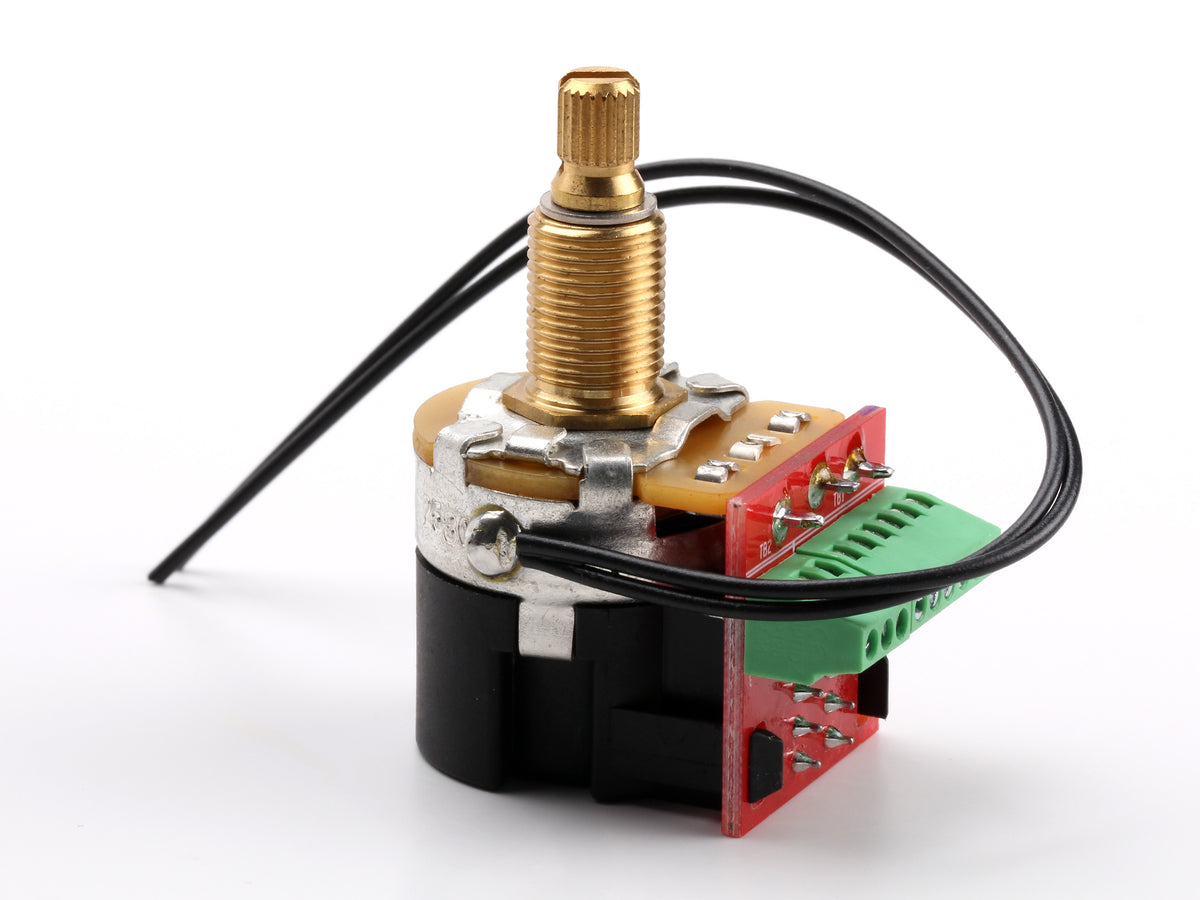

CTS 500k No-Solder Push/Pull, Split Shaft, Ground Wires Added

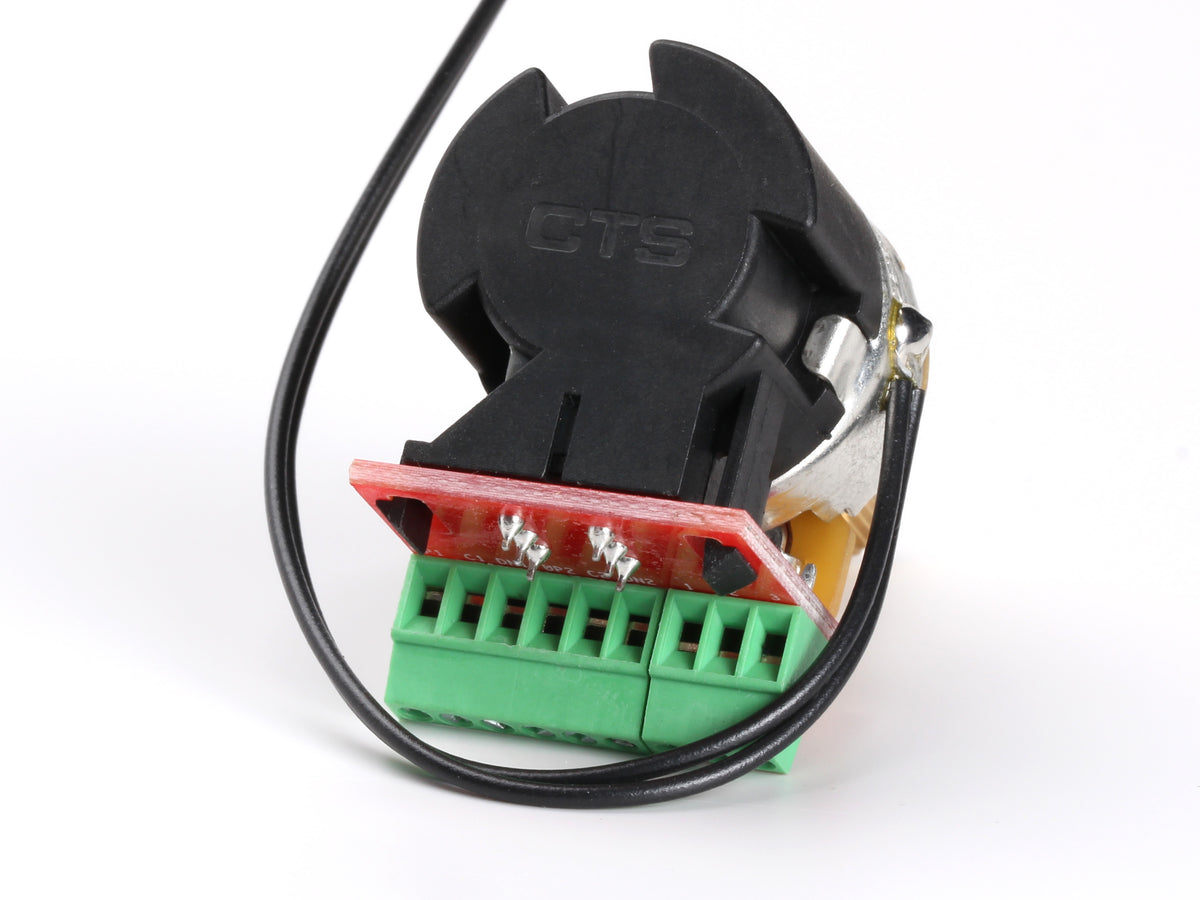

This is our PP01 solder-free push/pull pot with ground wires added. The CTS DPDT push/pull switch can be used for coil splitting, phase reverse, series/parallel and more, and our screw-down terminal block means no soldering at all: insert the wire, tighten the screw, done.

Specs

• Solder free!
• Ground wires added
• 500k audio taper (logarithmic)
• Split shaft, 24 teeth (for push-on knobs)
• 3/8-32 SAE bushing thread

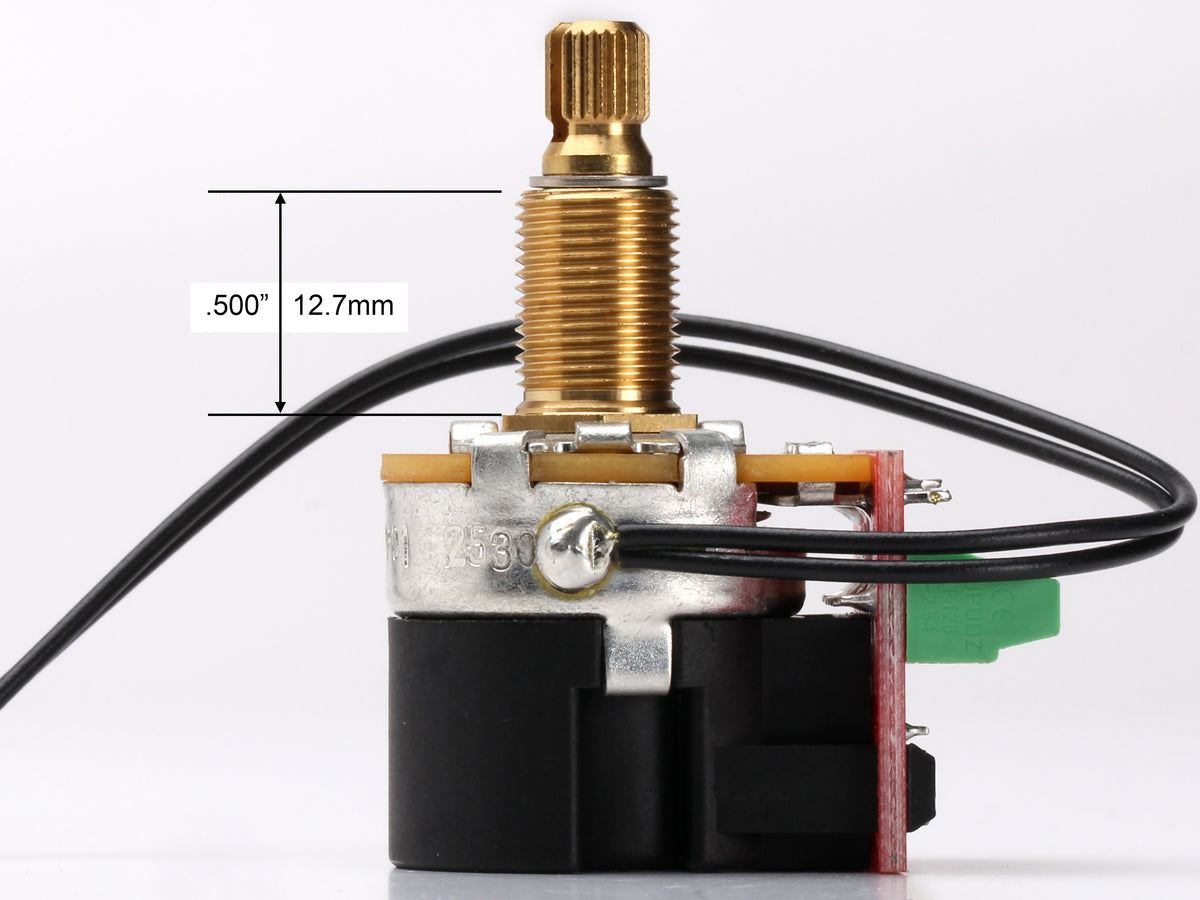

• 1/2" thread length, long enough for rear-routed guitars
• Screwdriver included
• 15/16" body diameter

Details

The ground wires make this version truly solder-free. If your control cavity isn't shielded, there's nothing to ground the pot to, and these wires give you that ground without soldering. Most wiring layouts also need a ground connected to one or more slots on the terminal block, and the wires take care of that too.

The pot is designed for 24-tooth push-on plastic knobs. We also include a brass sleeve that may be slipped over the pot shaft if desired, turning the split shaft into a quasi 1/4" solid shaft. You would use this if you intend to use setscrew knobs (which will need to be drilled 1/4", not 6mm).

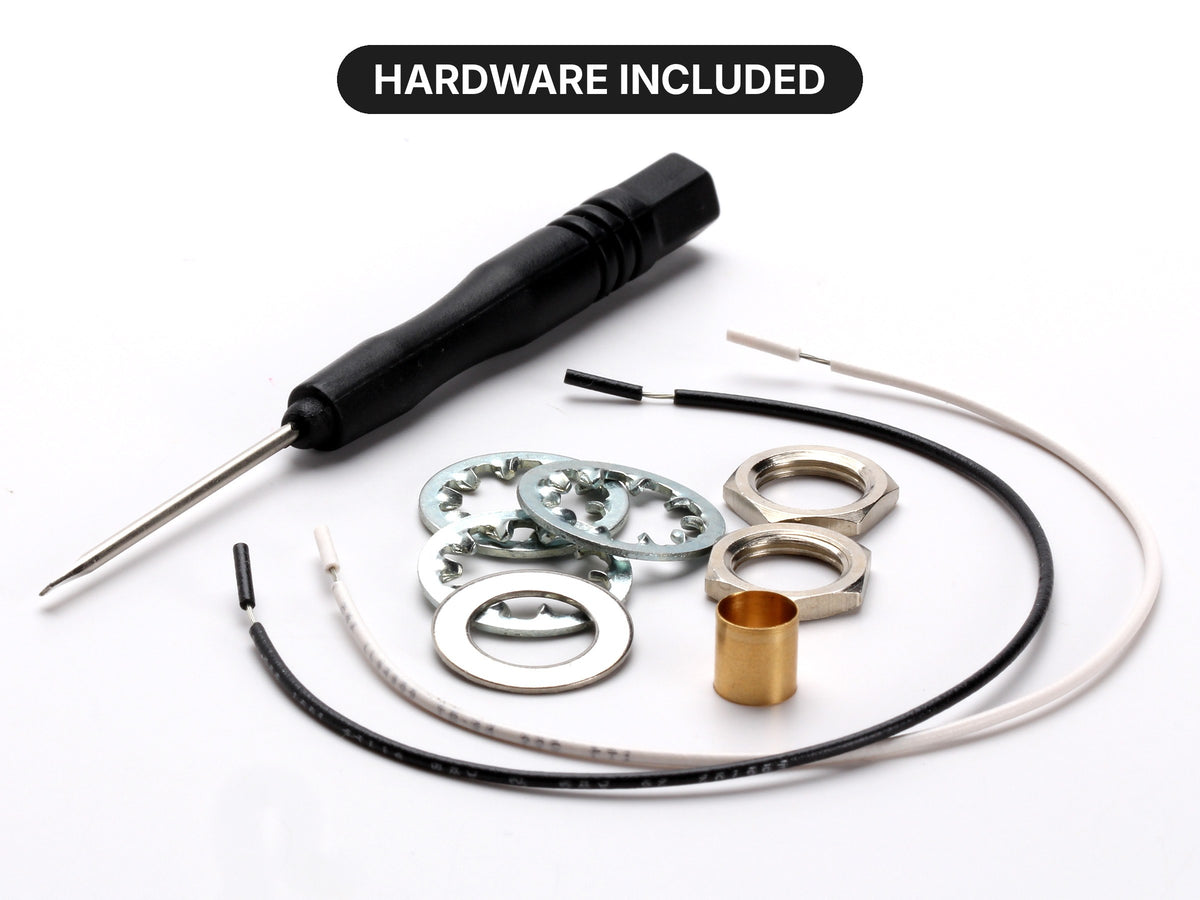

Includes

• Pot, with ground wires added
• 6" black and white wires, for jumpers where several connections share one slot
• Small screwdriver for the terminal screws
• Mounting hardware for top-rout and rear-rout installs
• Brass sleeve (see details)
