Oak-Grigsby

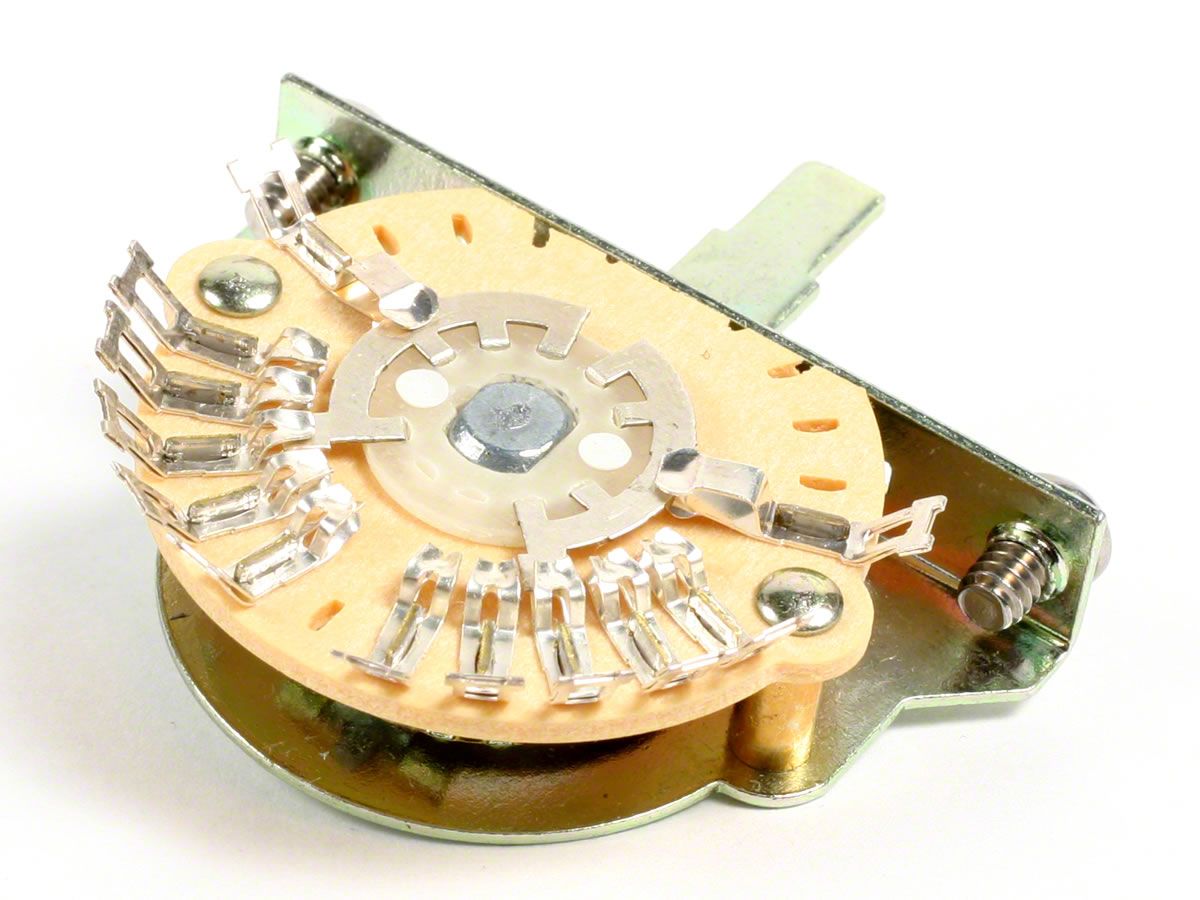

Oak-Grigsby Lever Switch, 5-Way (2-Pole Superswitch)

Oak-Grigsby Lever Switch, 5-Way (2-Pole Superswitch)

Regular price €11,95 EUR
Regular price Sale price €11,95 EUR
Sale Sold out
Shipping calculated at checkout.

BE ADVISED...
...most references to superswitches will refer to 4-pole switches, not this 2-pole switch. We sell the 4-pole switches as well, so be sure you know which you need. If any doubt, contact us and we'll help you out.

This Oak-Grigsby 2-pole superswitch is very useful for certain wiring. It's most often used in a Nashville Tele (Tele with a Strat pickup added in the middle), but can be used in a Strat-style guitar that has a master tone control (a 2-control guitar, like an Ibanez or Suhr), where the Nashville Tele's pickup selection is desired:

Position 5: neck
Position 4: neck + middle
Position 3: neck + bridge
Position 2: bridge + middle
Position 1: bridge

In order to achieve the wiring above, both of the switch's poles are used. So there is no pole available to make tone control assignments, hence the requirement for a master tone control that is fed from the volume pot, rather than from the switch. Essentially this wiring marries the 1/2/4/5 positions of a Strat with the middle position of a Tele. If you're the player of a Strat-style guitar who likes the idea of the neck/bridge combination more than the middle pickup by itself, then this may be an option for you!

View full details

Customer Reviews

Based on 5 reviews
80%
(4)
0%
(0)
20%
(1)
0%
(0)
0%
(0)
J
Jam Cornelio
not so reliable

not sure if i got a dud, but it has trouble correctly registering the contacts between positions 1 and 2, unless i really rock it, sometimes it just sticks to one of the two regardless of the actual position. it’s workable but not reliable enough for the stage now unfortunately

Hi, sorry for the trouble! There's always a possibility that there's a problem with the switch, though having sold many thousands of these over the years we can say that we've had very few problems. Generally we find this issue has more to do with the way the switch is attached to the pickguard, where they are often hard against one side of the slot or the other, causing the switch positions to feel indistinct. It's friction that is the culprit, the switch's lever is literally rubbing against the edge of the slot. This can be a natural consequence of tightening the screws, they can pull the switch to one side or the other when they're tightened.

If this is the problem, the solution is to loosen the two screws (with the screws loose the switch will float in the slot, and the switch detents should feel distinct again), and then re-tighten with the switch held in the center of the slot as well as can be managed. Again, merely tightening the screws can make the switch want to move to one side or the other, but it can generally be held in place well enough while the screws are tightened to alleviate the friction problem and make it click into the positions with more authority.

If this is the problem with your switch, a quick adjustment will make it better. If you feel this is not the problem, then we will replace the switch with our apologies for any inconvenience, just let us know. Thanks!

***EDIT***
Upon reading our comments above the customer notified us that he was aware of the problem we outlined and had mitigated against it. He felt that the switch was defective, so we replaced it with a new one.

G
Gary Mason (8182gary)
Oak-Grigsby 5 way 2 pole super switch

Perfect........ VERY FAST SHIPPING...........
I did not know that they made these........ till a couple weeks ago......
Just what I need................
Thank You !!!!!!!!!!!!!!!!!!
Gary

L
Loren Nazareth
Great product

Quality product, great customer service and fast delivery.

J
Jays
Switch review

It worked fine for my particular wiring job. No issues, well made.

S
Steven Barton (sb4033)
5-way Oak-Grigsby

Haven’t installed it yet but it appears to be quality. Shipping was quick and painless.
