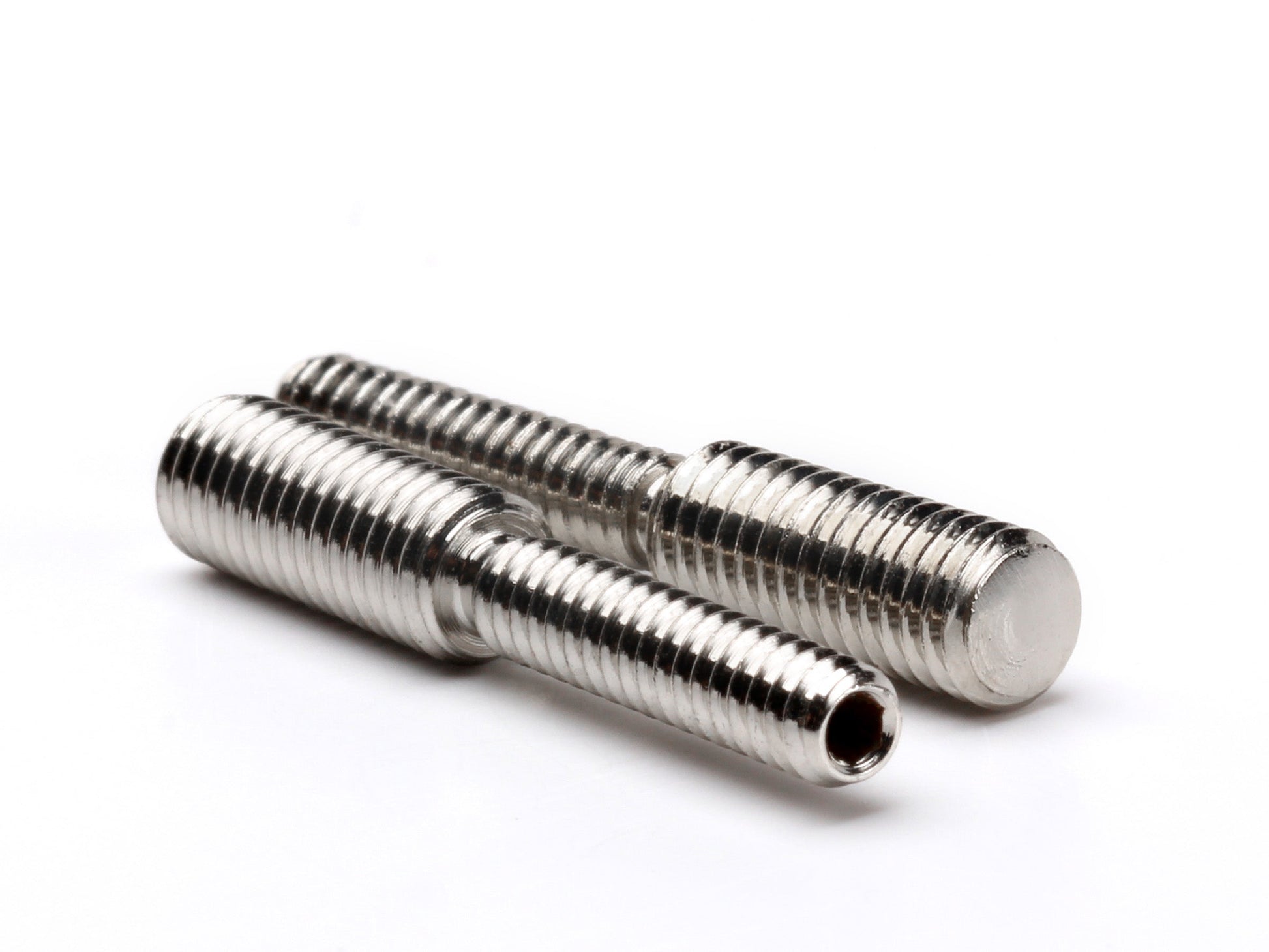

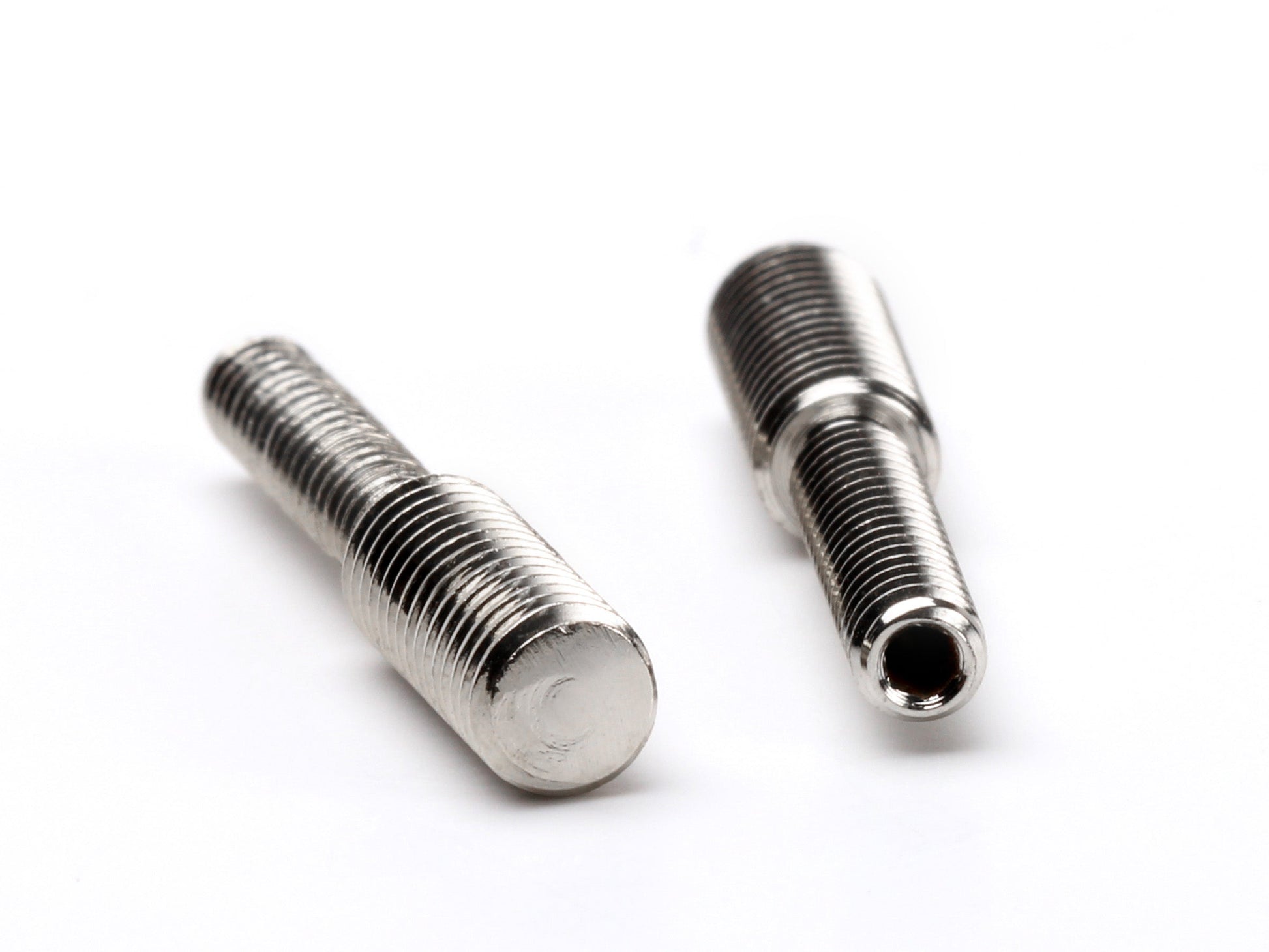

Bridge Post Set, ABR-1 Conversion, M5 to 6-32 (Nashville to ABR-1)

Convert a guitar with a Nashville bridge to an ABR-1 bridge. A Nashville bridge sits on posts that thread into M5 anchors inserted in the guitar's top. These posts screw into those anchors and give you 6-32 threads on top, ready for an ABR-1 bridge and thumbwheels. Sold as a pair. Made in the USA.

Details

Installing. Remove the old posts and screw these into the existing M5 anchors; no drilling. Each post has a hex socket in the top, broached for a 1/16" hex key, for tightening it into the anchor; on some the plating makes the socket a little tight and a 1.5 mm key may be a better fit. We sort them so both posts will be the same.

Thumbwheels are not included; see our ABR-1 thumbwheel sets.

Specs

• Converts M5 anchors to 6-32 posts (for ABR-1 bridges)
• Bottom thread M5, 1/2" long
• Top thread 6-32, 5/8" long
• Hex socket in the top, 1/16"
• Nickel-plated steel
• Sold as a pair
• Made in the USA
