Bridge Post Set, ABR-1 Conversion, M8 to 6-32 (Asian Bridge to ABR-1)

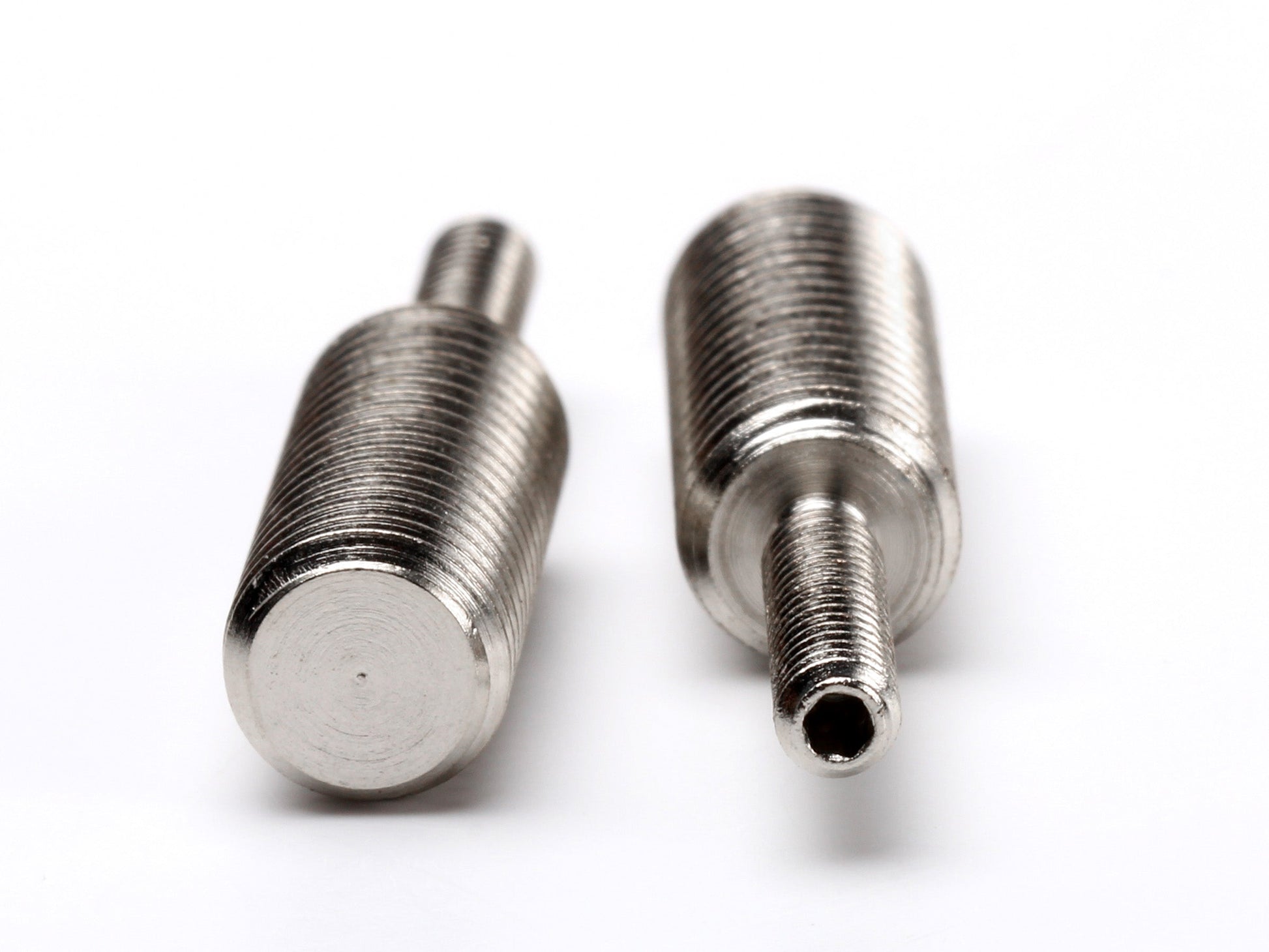

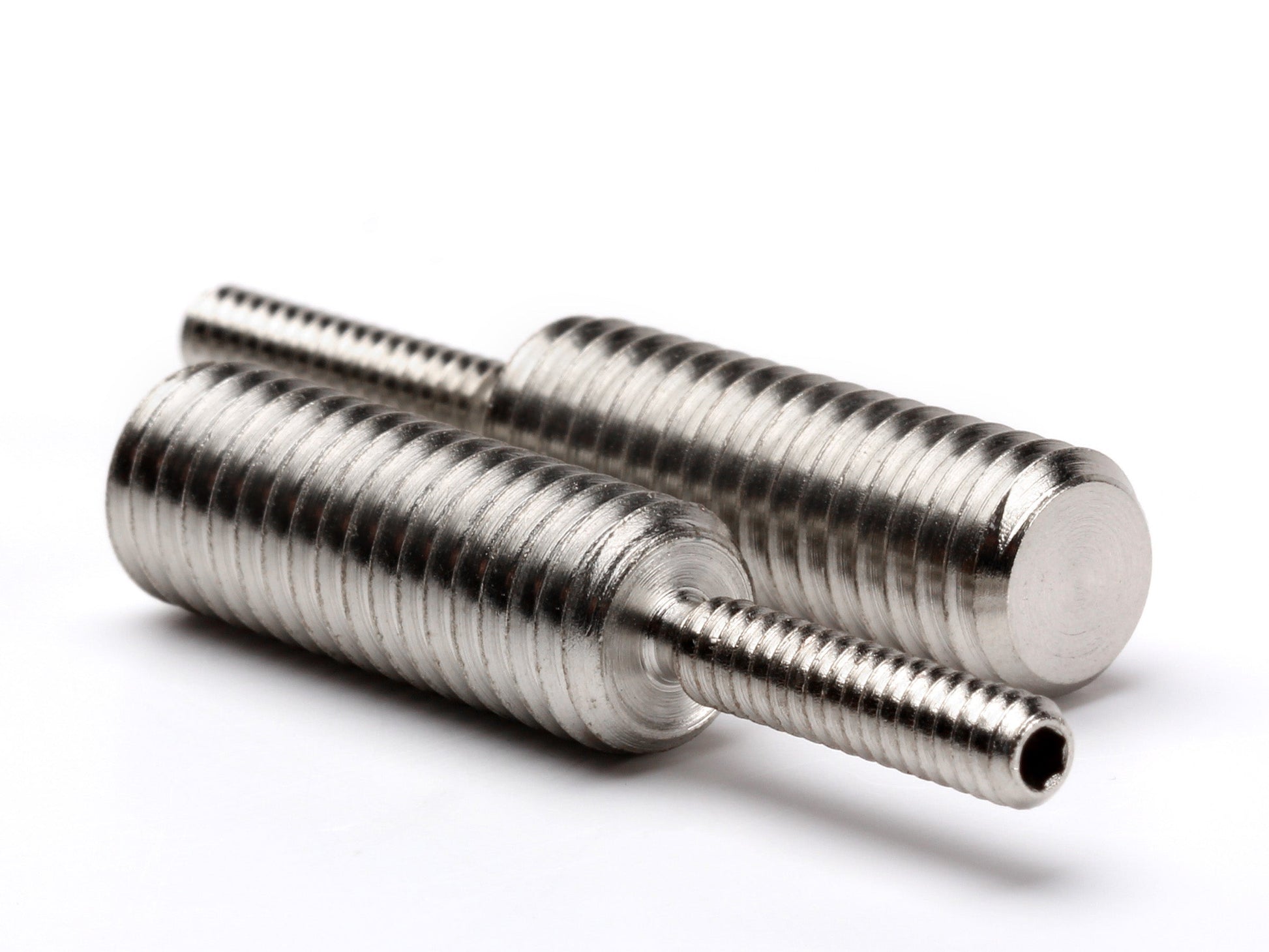

Want to put an ABR-1 style bridge on your import guitar? These conversion posts screw into the M8 anchors found in the tops of many imported guitars and give you 6-32 threads on top, so you can fit an ABR-1 bridge and thumbwheels. Quick and easy. Sold as a pair. Made in the USA.

Details

Installing. Remove the old posts and screw these into the existing M8 anchors; no drilling. Each post has a hex socket in the top, broached for a 1/16" hex key, for tightening it into the anchor; on some the plating makes the socket a little tight and a 1.5 mm key may be a better fit. We sort them so both posts will be the same.

Thumbwheels are not included; see our ABR-1 thumbwheel sets.

Specs

• Converts M8 anchors to 6-32 posts (for ABR-1 bridges)
• Bottom thread M8, .900" long
• Top thread 6-32, 5/8" long
• Hex socket in the top, 1/16"
• Nickel-plated steel
• Sold as a pair
• Made in the USA
