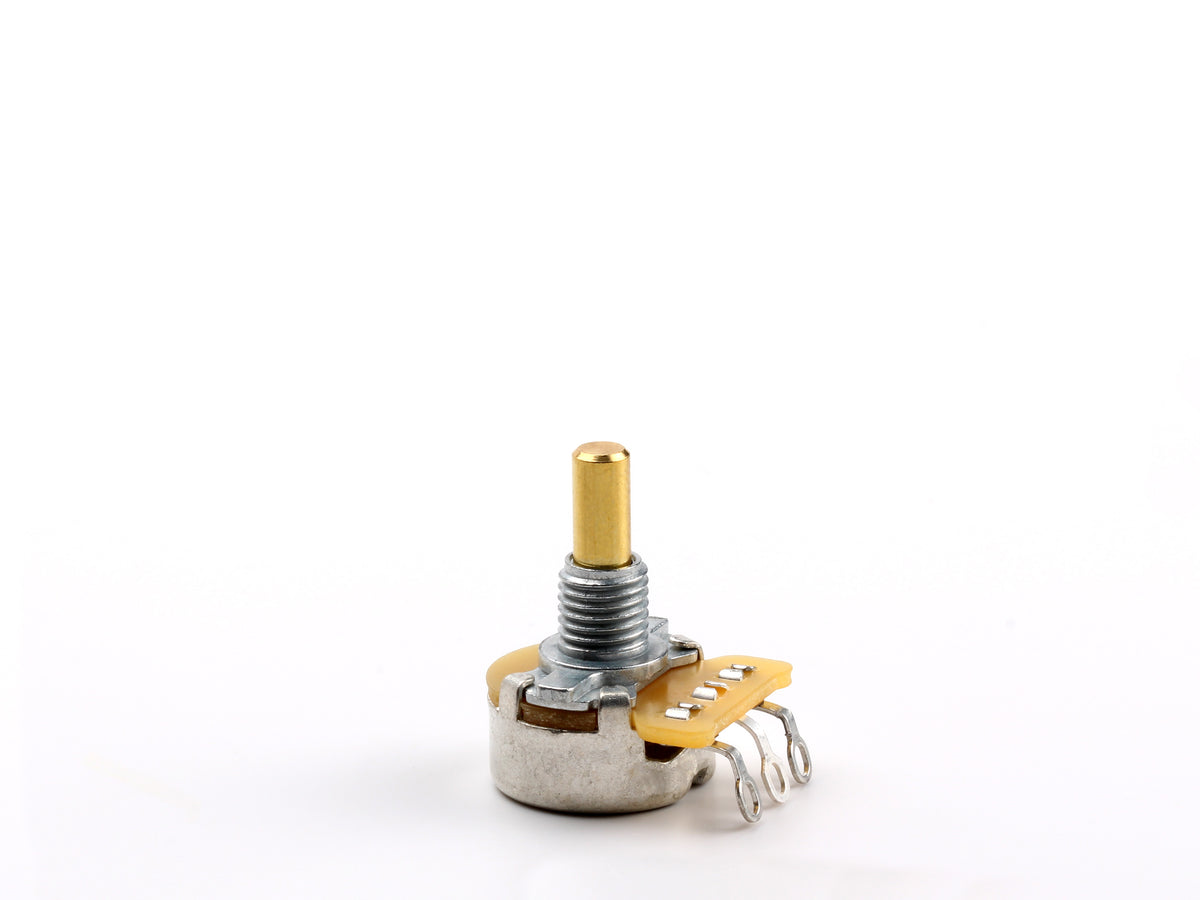

CTS 1M Linear Mini Pot, Bracket Mount, for Jazzmaster & Jaguar

Both Fender's Jazzmaster and Jaguar were originally wired with a separate circuit for the neck pickup, which provided a volume and tone control for the neck pickup that was separate from the master volume and tone controls. This neck pickup circuit was controlled using roller knobs that are attached to mini pots. This is the mini pot used for volume control, it's the right part for both the Jazzmaster and Jaguar when vintage wiring is desired.

Mounting hardware included (shown in the last photo).

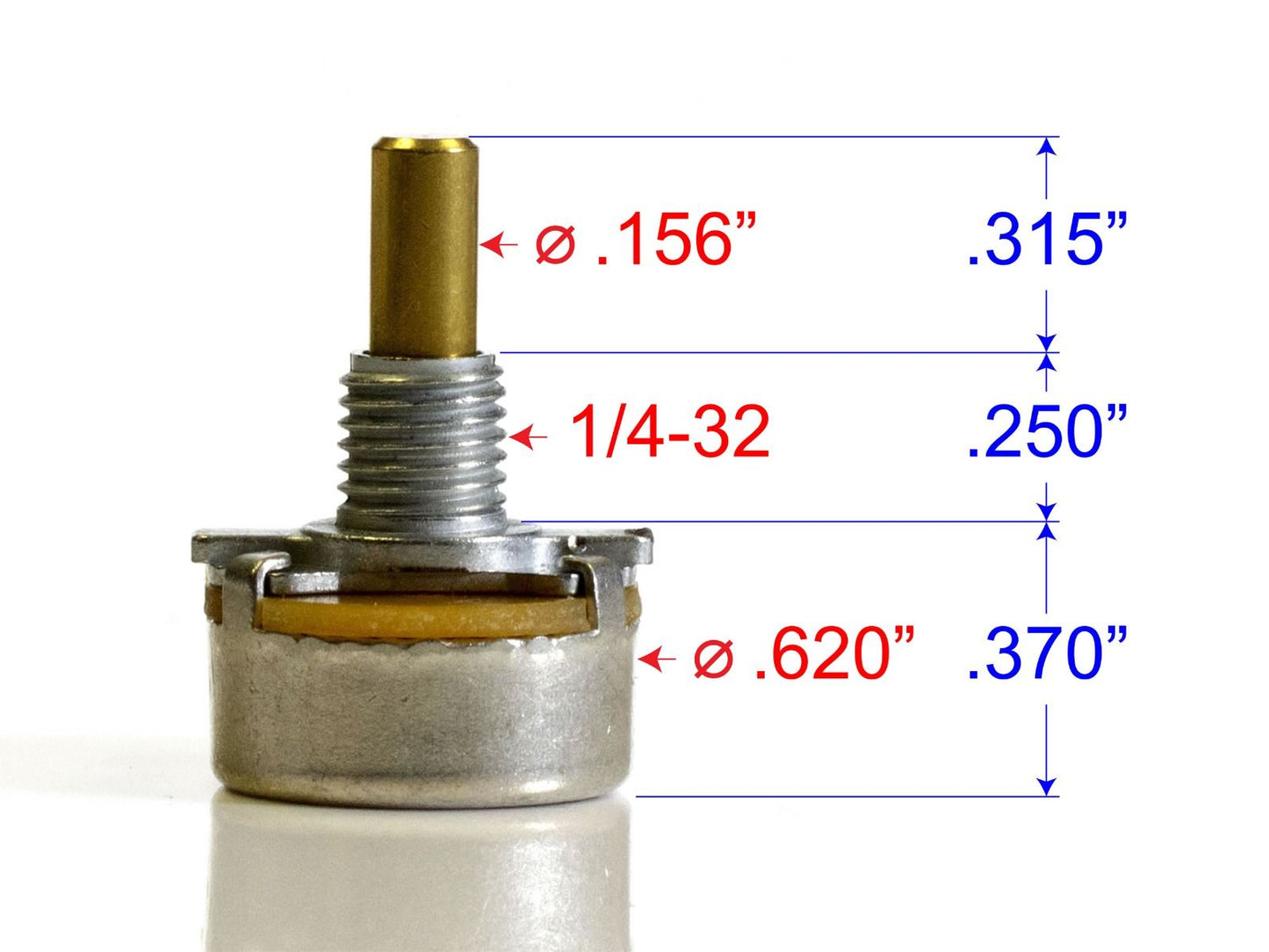

Specs

• 1 meg linear taper
• Solid shaft (for roller knobs)
• 5/32" shaft diameter
• 1/4-32 SAE bushing thread

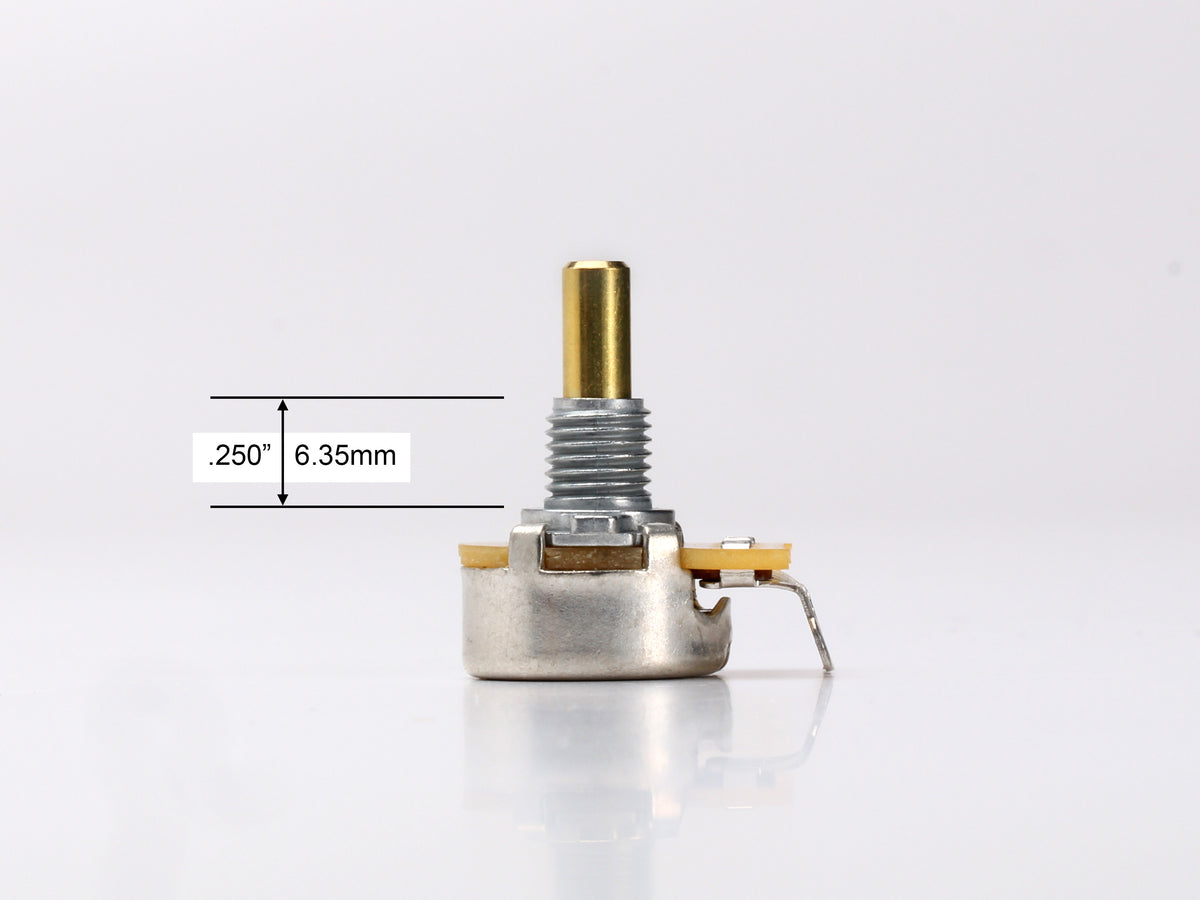

• 1/4" thread length
• Mini pot
• 5/8" body diameter
