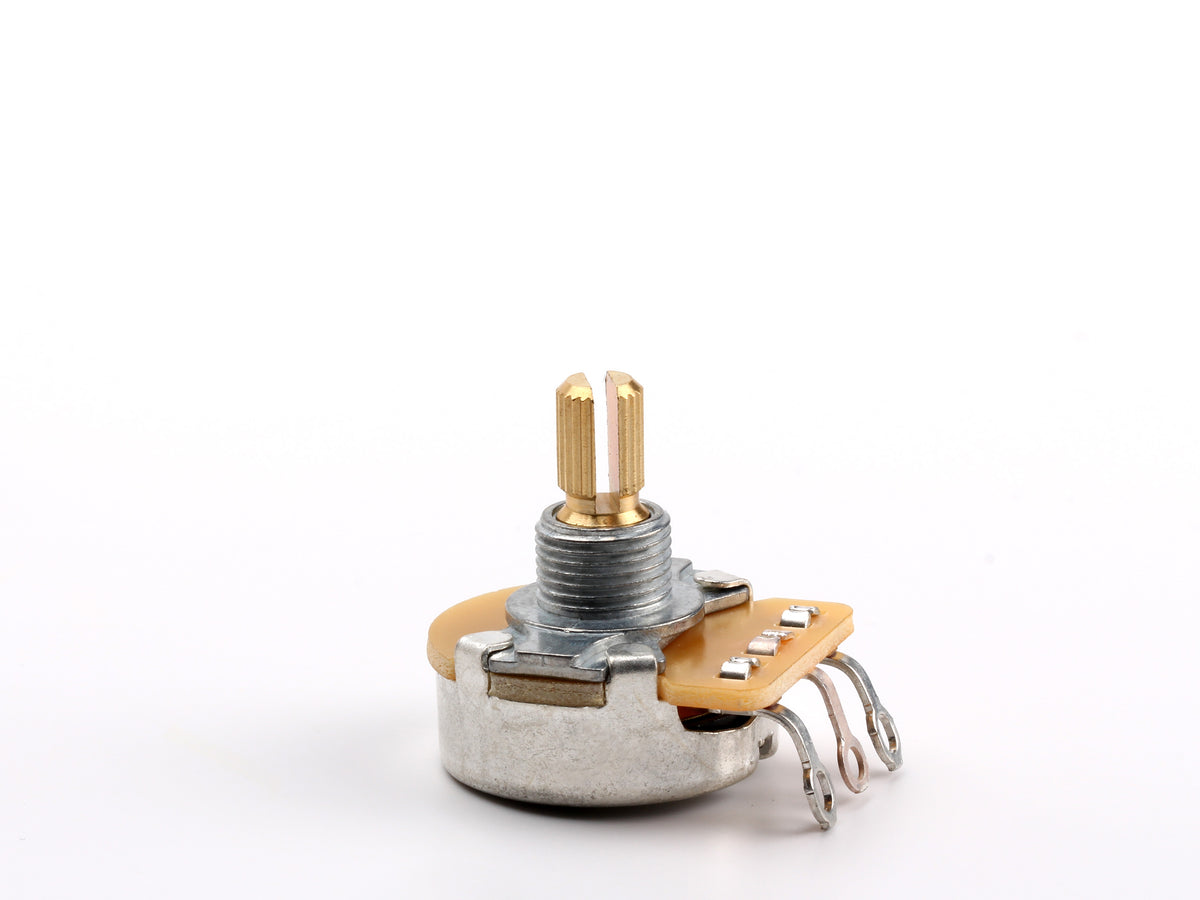

  • CTS 1M Linear Pot, Split Shaft, 1/4" Thread Length, for Jazzmaster - front

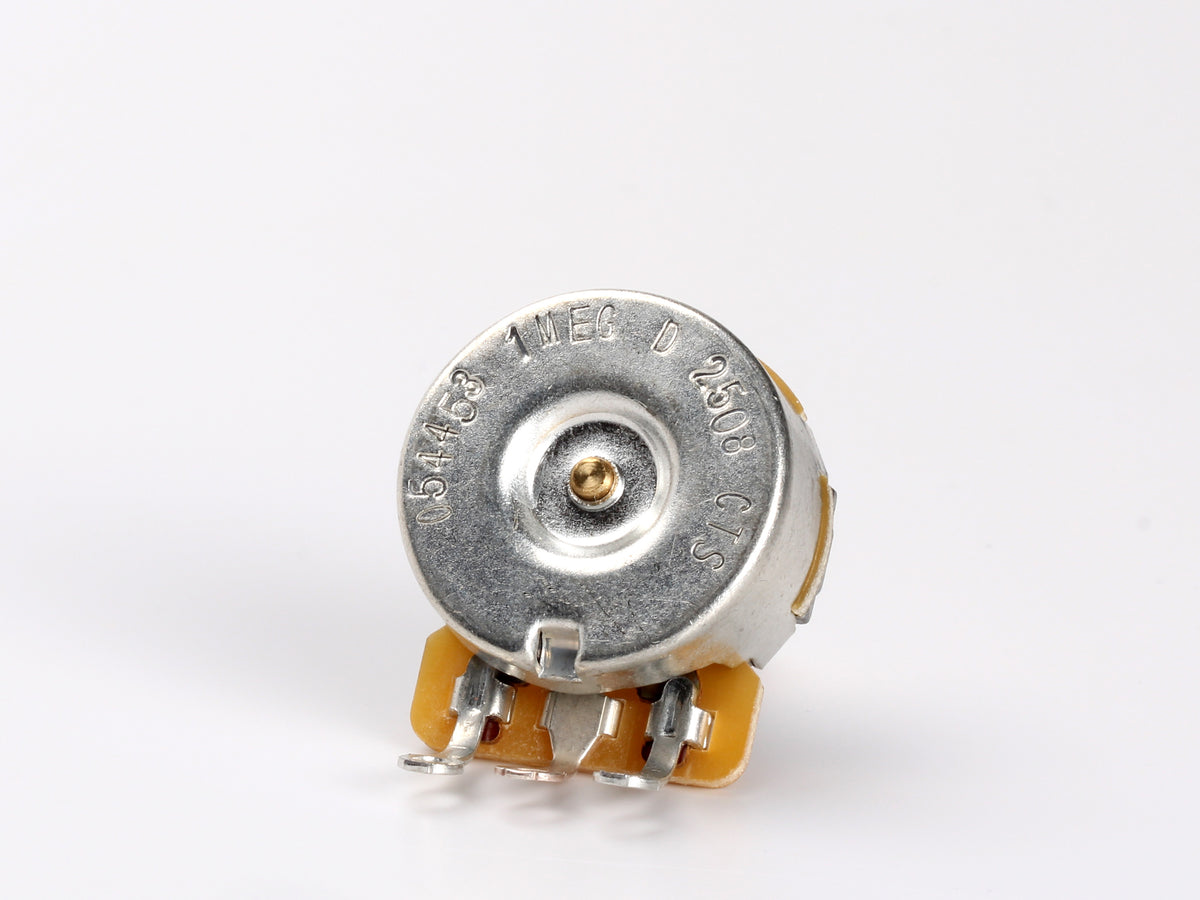

  • CTS 1M Linear Pot, Split Shaft, 1/4" Thread Length, for Jazzmaster - back, showing lugs and label

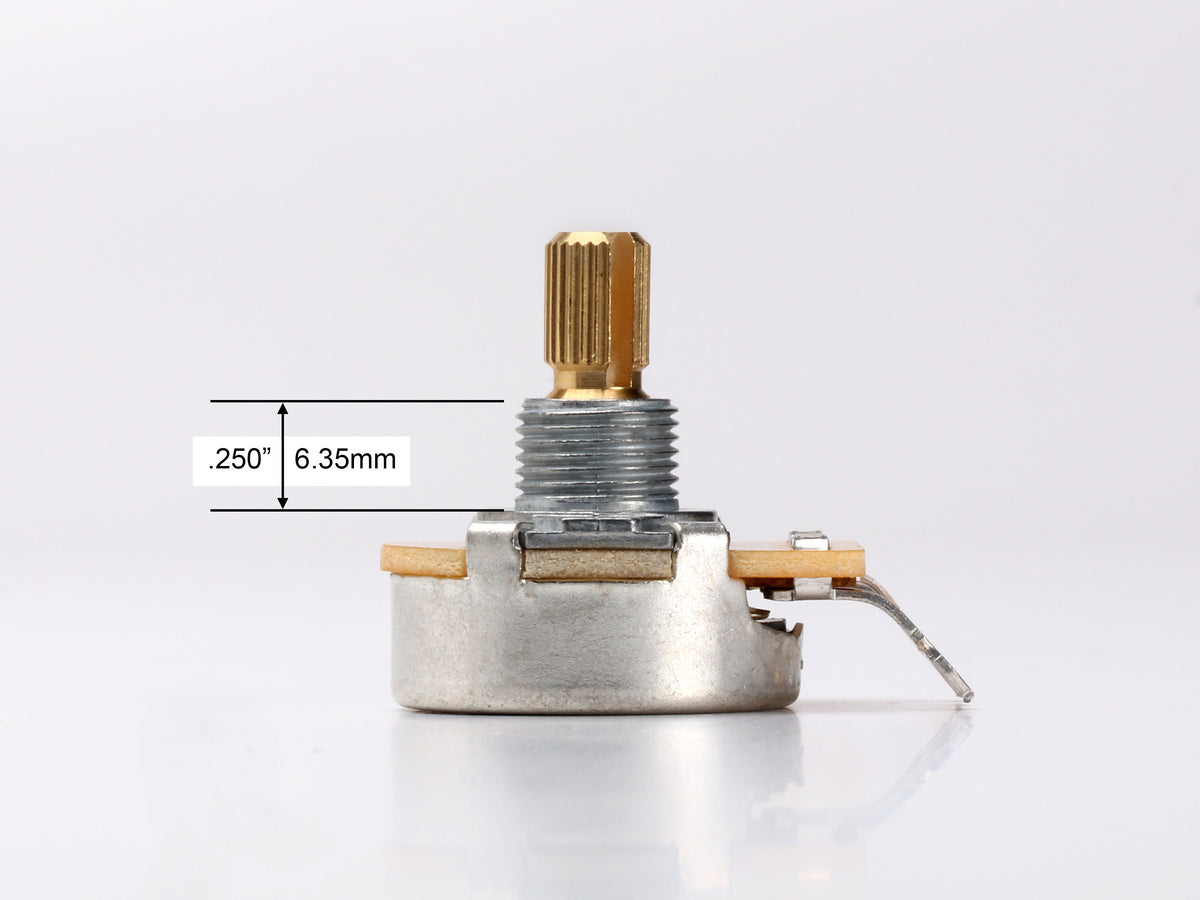

  • CTS 1M Linear Pot, Split Shaft, 1/4" Thread Length, for Jazzmaster - side, showing shaft and thread length
  • CTS 1M Audio Pot, Solid Shaft, 1/4" Thread Length, for Jaguar - thread length
  • CTS 1M Audio Pot, Solid Shaft, 1/4" Thread Length, for Jaguar - mounting hardware included
1 6

CTS

CTS 1M Linear Pot, Split Shaft, 1/4" Thread Length, for Jazzmaster

CTS 1M Linear Pot, Split Shaft, 1/4" Thread Length, for Jazzmaster

$14.79 USD
$14.79 USD
Sale Sold out
Shipping calculated at checkout.

This is the pot used for the master volume control in Fender's USA Vintage Reissue Jazzmaster. We buy these pots directly from Fender, they're the right part for this application if vintage wiring is desired.

Mounting hardware included (shown in the last photo).

Specs
  • 1 meg linear taper
  • Split shaft, 24 teeth (for push-on knobs)
  • 3/8-32 SAE bushing thread
  • 1/4" thread length (mount to pickguard or control plate)
  • Low torque (dimpled back - turns easily)
  • 15/16" body diameter
