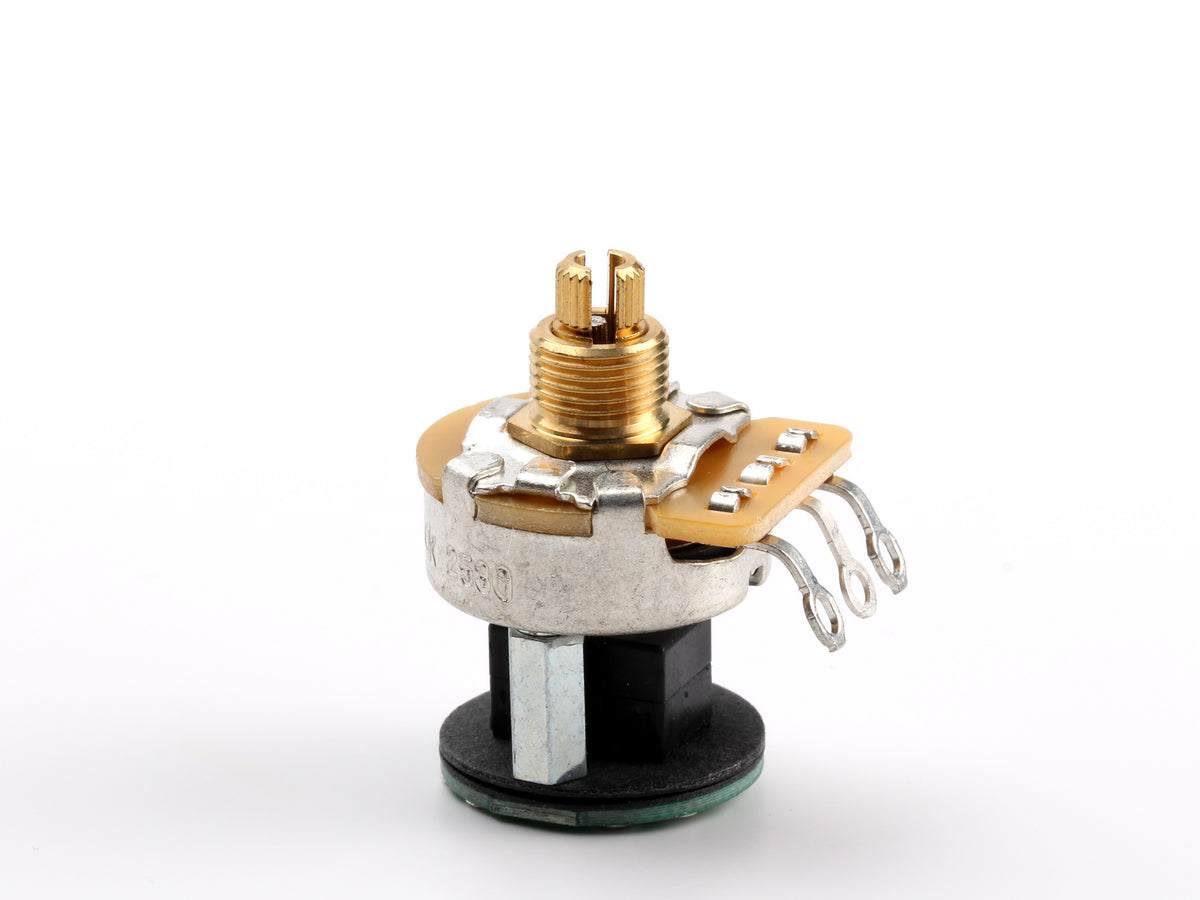

CTS 250k Audio Pot, S-1 Pushbutton Switch, Split Shaft

This is the pot behind Fender's S-1 switching system: a standard volume pot with a 4PDT switch built in, operated by pushing the knob. It's the way to add extra pickup combinations without drilling the guitar or adding a mini-toggle.

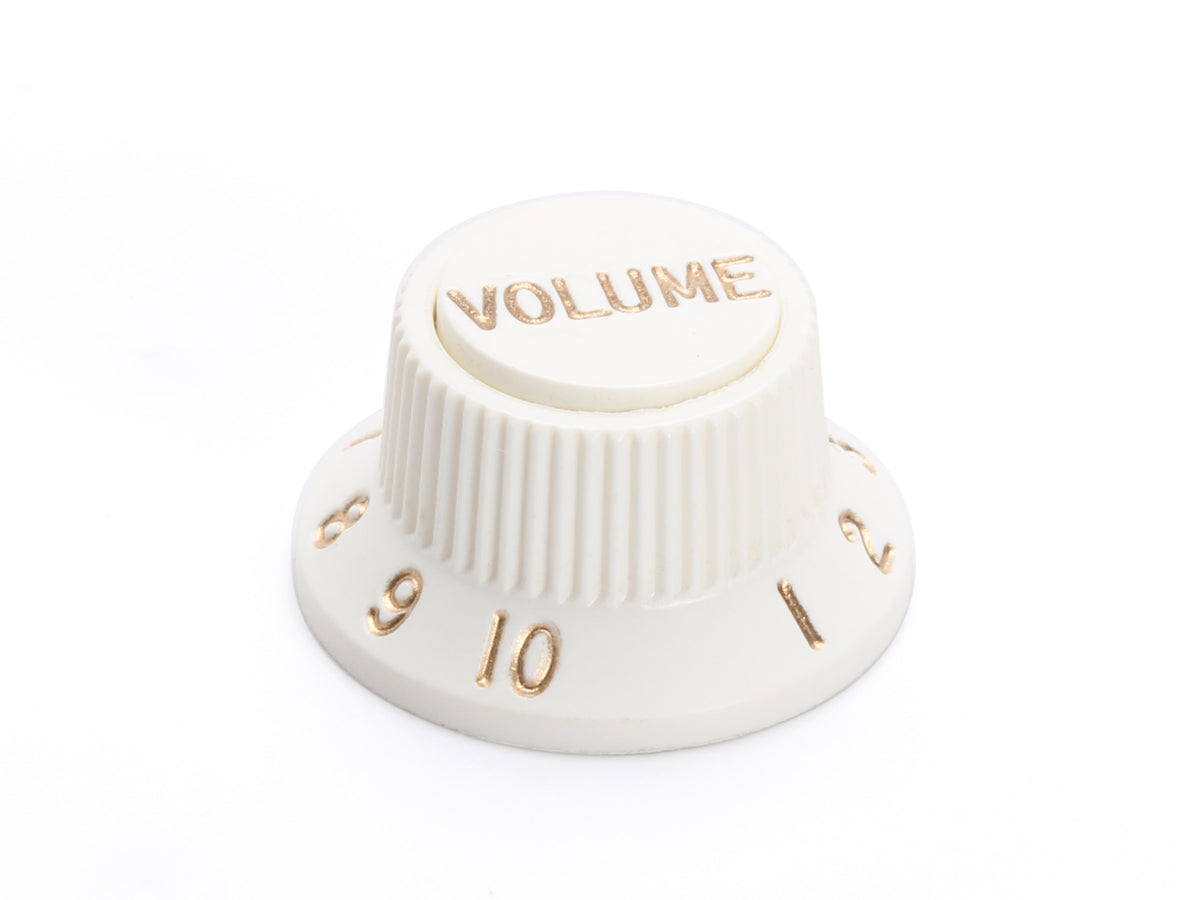

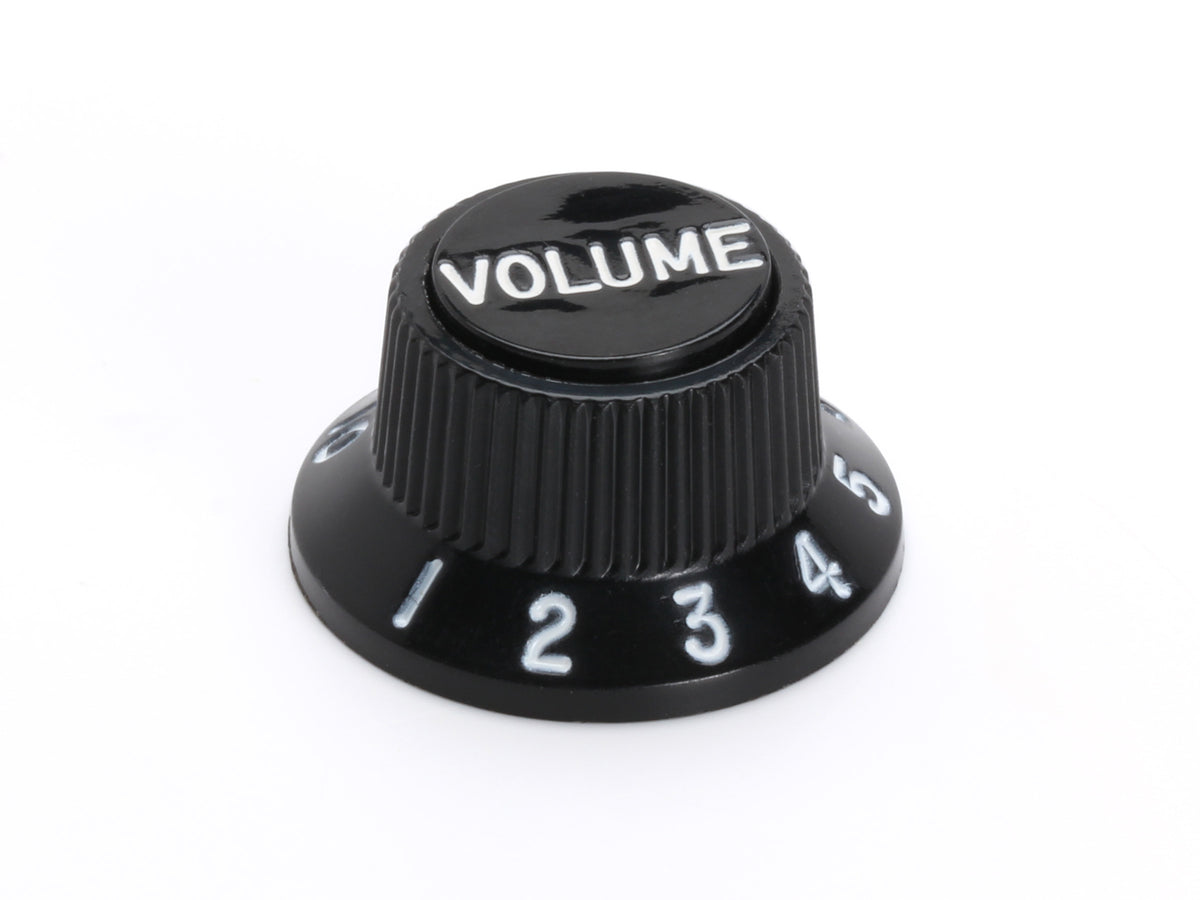

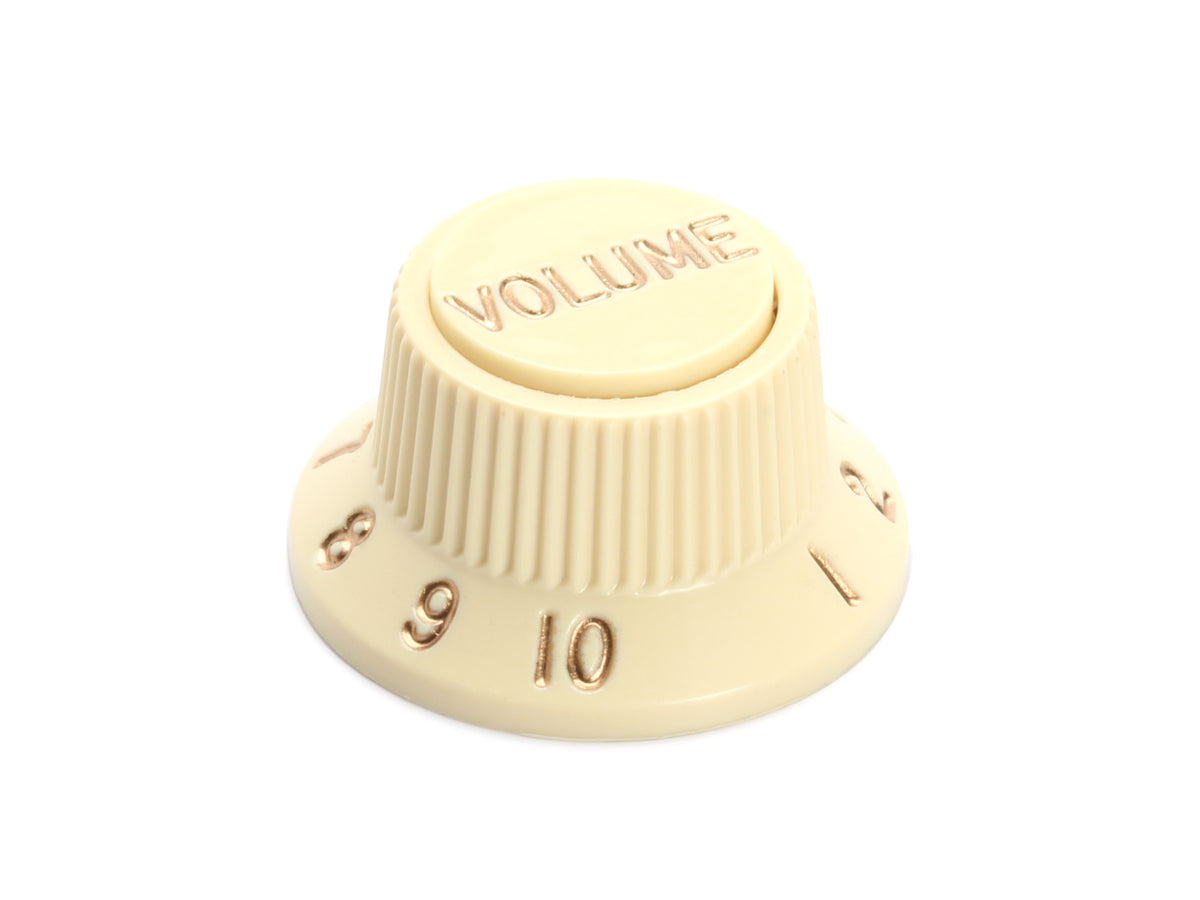

Important: this pot only works with S-1 knobs. The switch is operated by a plunger in the center of the S-1 knob; a standard knob will turn the pot but can't work the switch. Add an S-1 volume knob in Parchment, Black or Aged White with the Knob option above (other knobs not included).

Mounting hardware included (shown in the last photo).

Specs

• 250k audio taper (logarithmic)

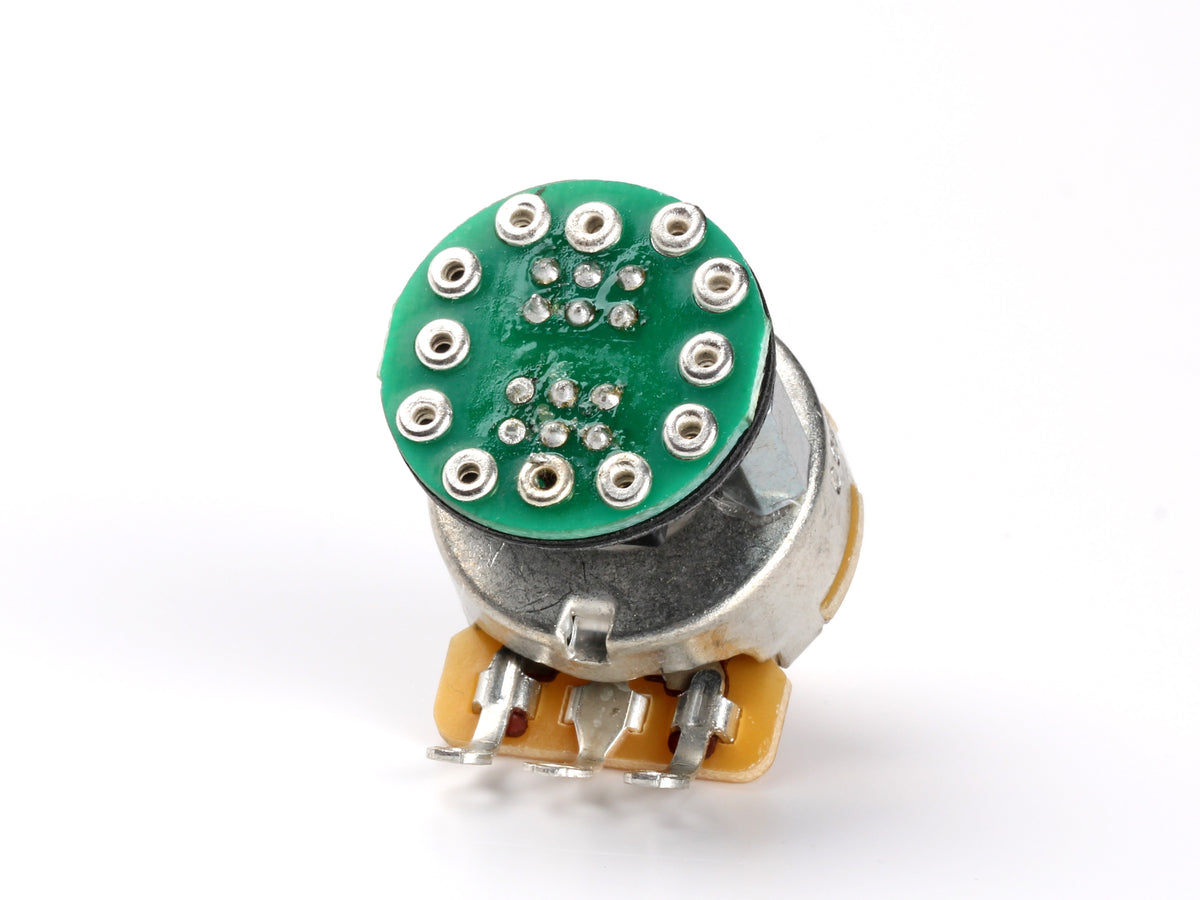

• Built-in 4PDT pushbutton switch (Fender S-1)
• Split shaft, 24 teeth (for push-on knobs)
• 3/8-32 SAE bushing thread

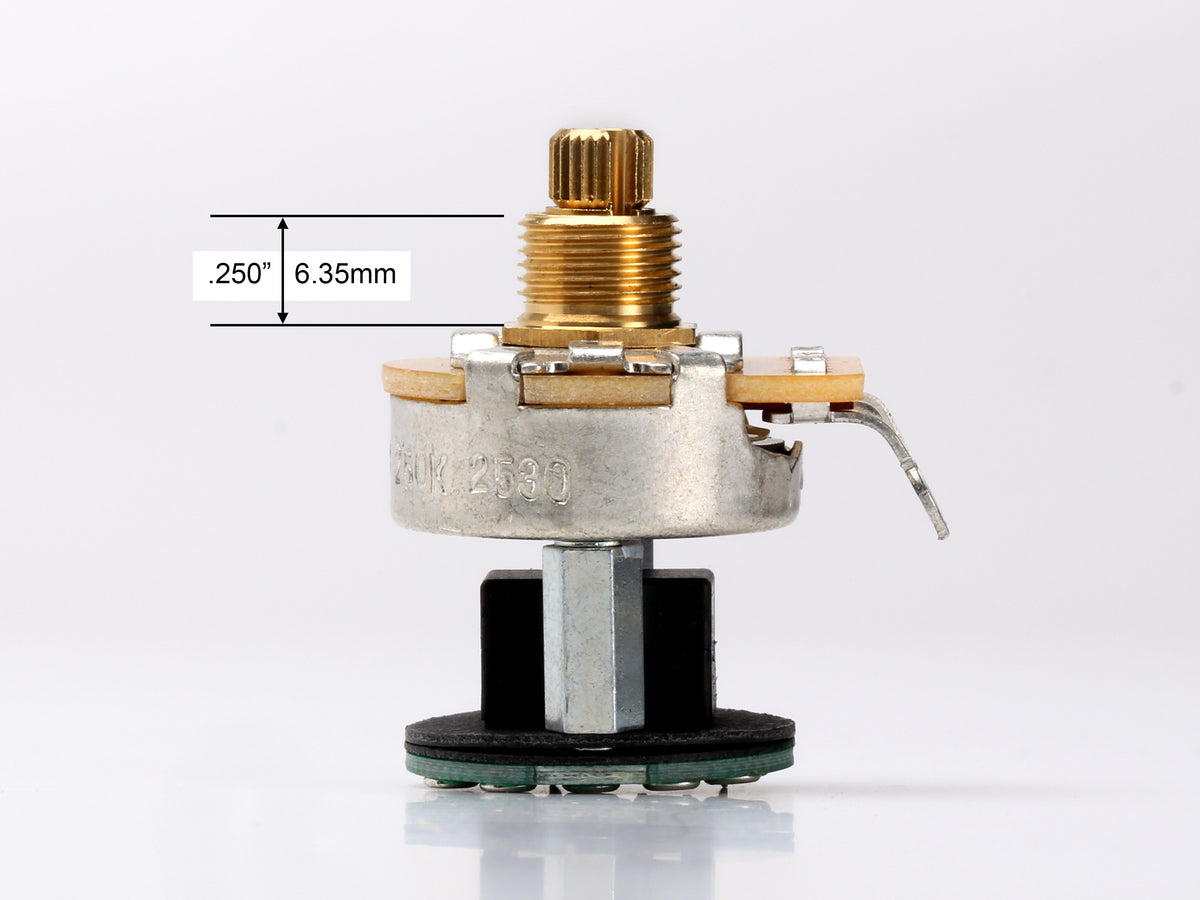

• 1/4" thread length (mount to pickguard or control plate)
• 15/16" body diameter
