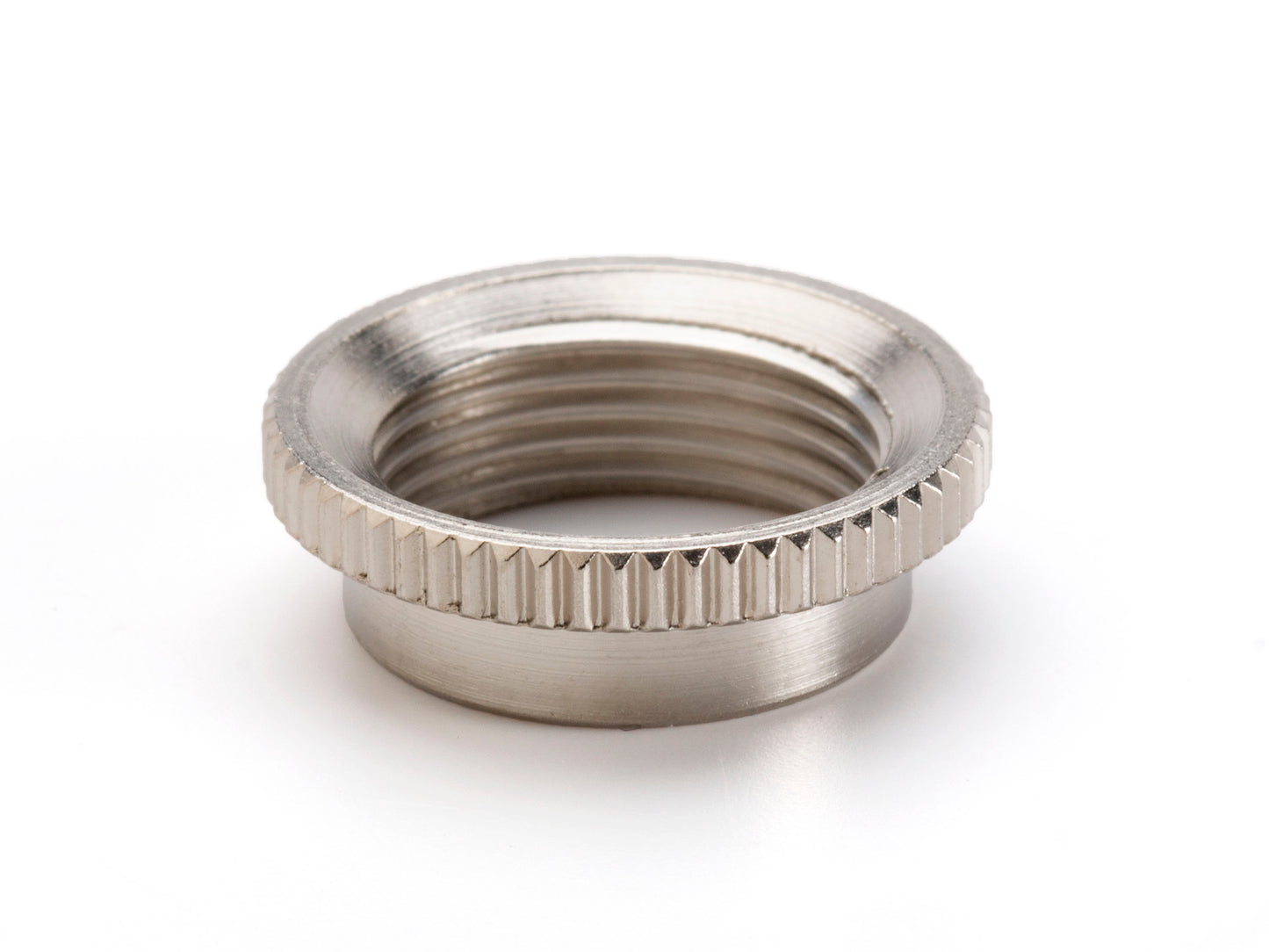

Deep Nut for Switchcraft Switches, Fine Knurl, Nickel

This deep nut is used with Switchcraft toggle switches to enable mounting to guitar tops. We stock three Switchcraft toggles, and only two require the deep nut:

• SW-12010X - Long Straight - Deep Nut Required
• SW-12013X - Right Angle - Deep Nut Required
• SW-12120X - Short Straight - Deep Nut Not Required

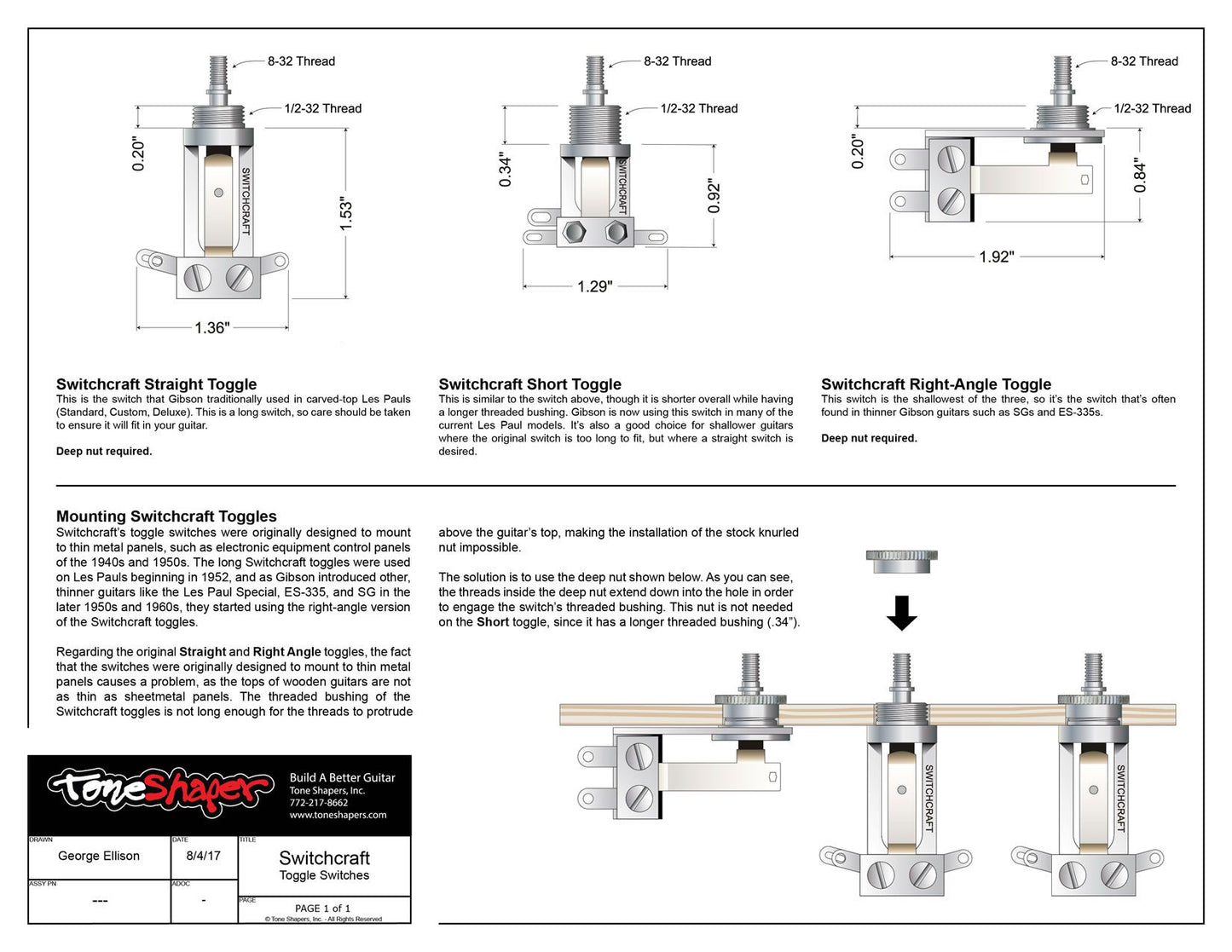

Please refer to the drawing above to see how the deep nut is used.
