ToneShaper

ToneShaper Wiring Kit, Gibson ES-335

ToneShaper Wiring Kit, Gibson ES-335

Regular price $52.99 USD
Regular price Sale price $52.99 USD
Sale Sold out
Shipping calculated at checkout.

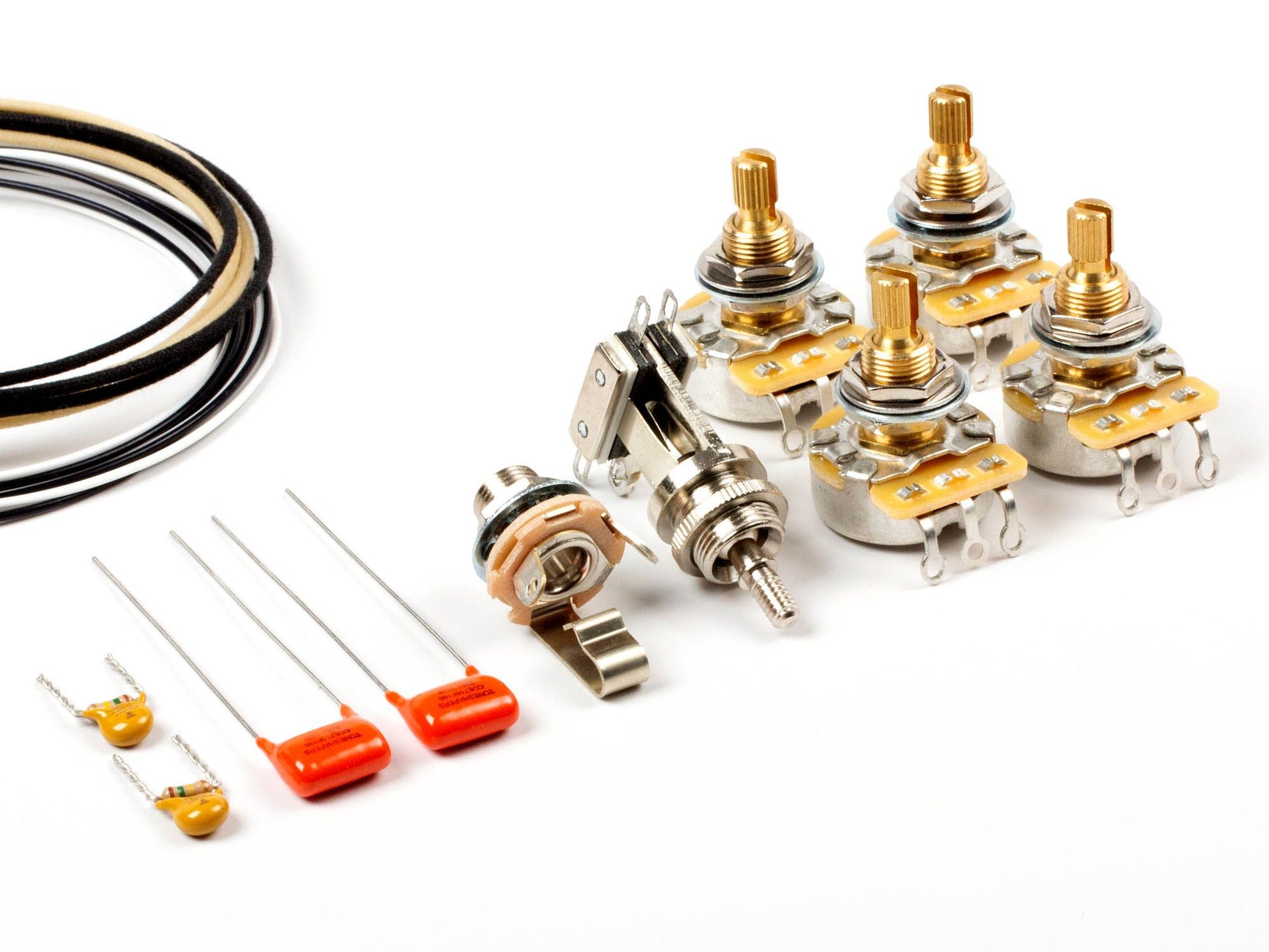

This kit includes everything you need to wire a Gibson ES-335 or similar guitar. It includes the finest components, from the same suppliers that Gibson has used for years:

  • (2) Capacitor, .022µF Orange Drop
  • (1) Jack, Switchcraft 1/4" Mono, Long Bushing
  • (4) Pot, CTS 500k Audio, Low Torque (1/2" Bushing Length)
  • (1) Switch, Switchcraft 3-Way Toggle, Short Straight
  • (2) Treble Bleed Kit for Humbuckers
  • 2' Wire, 22AWG Cotton Push Back w/ Tinned Overcoat, Black
  • 2' Wire, 22AWG Cotton Push Back w/ Tinned Overcoat, White
  • 2' Wire, 22AWG Single Conductor Braided
  • 2' Wire, 22AWG Stranded Silver-Plated Copper, Black PTFE
  • 2' Wire, 22AWG Stranded Silver-Plated Copper, White PTFE

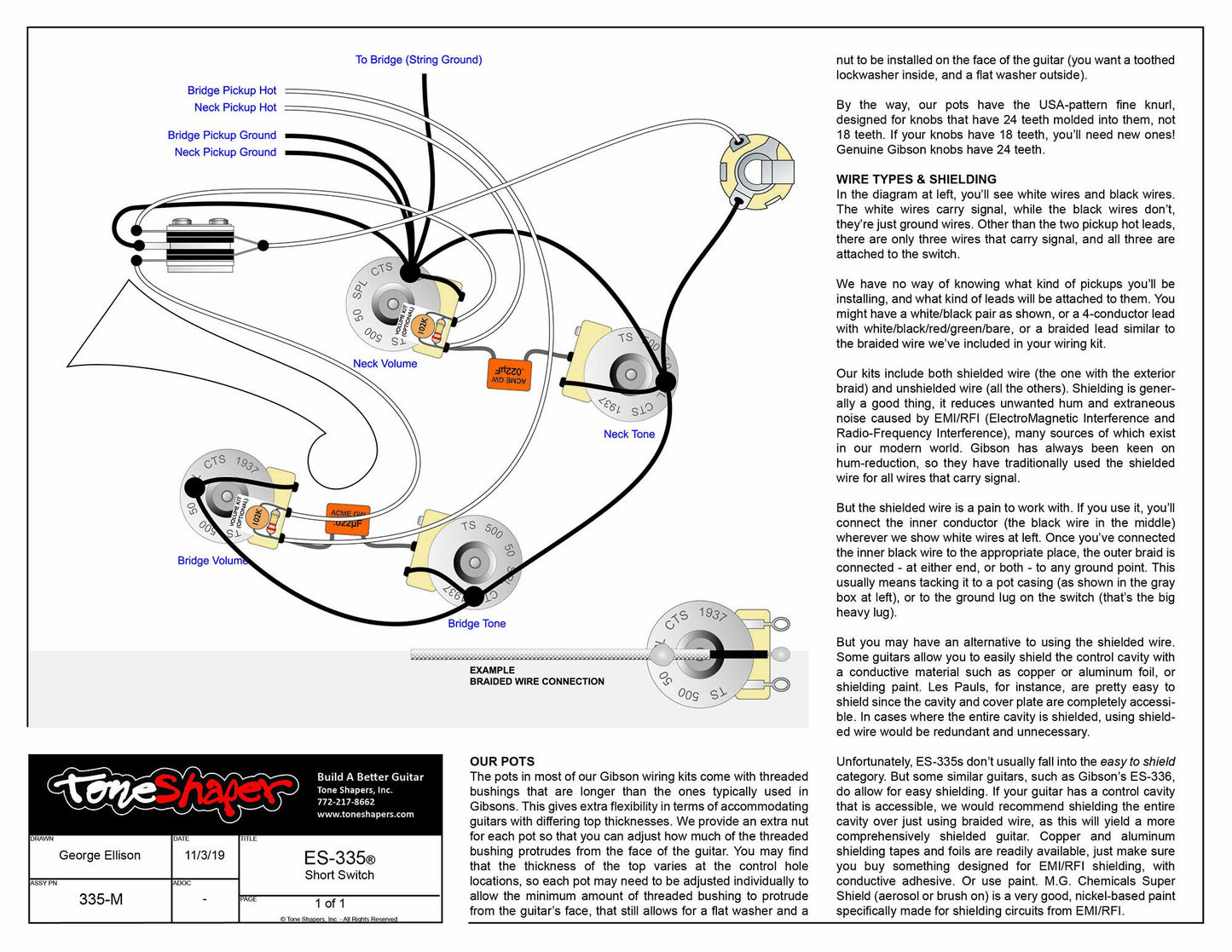

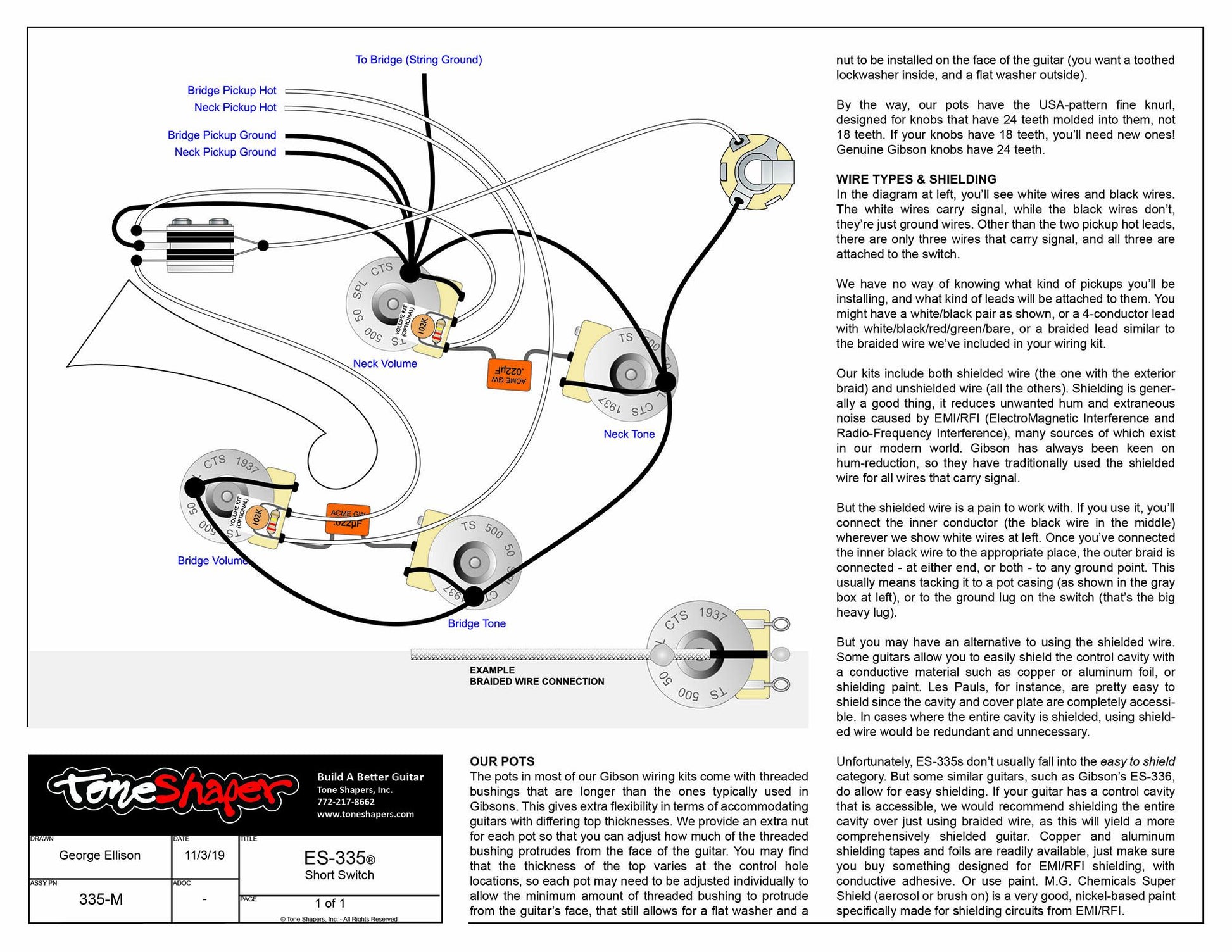

  • (1) Professional, Fully-Illustrated Wiring Diagram

Please note: knobs & switch tip are not included. There are just too many options. We sell 12 varieties of Gibson-style knobs sets, each includes four knobs plus a Switchcraft switch tip. The knobs will fit these 24-tooth pots correctly, and the switch tip is the right part for the Switchcraft switch included in this kit. Gibson knobs & switch tips fit our parts properly, but imported knobs and switch tips don't. So if you have knobs/tip that came off an Epiphone or other imported guitar (Tokai, Burny, PRS CE, etc), then you're going to need knobs.
