ToneShaper
ToneShaper Wiring Kit, Les Paul Special, Modern Wiring
ToneShaper Wiring Kit, Les Paul Special, Modern Wiring
Couldn't load pickup availability
This kit includes everything you need to wire a Gibson Les Paul Special or similar guitar. It includes the finest components, from the same suppliers that Gibson has used for years:
- (2) Capacitor, .022µF Orange Drop
- (1) Deep Nut for Switchcraft Switches, Nickel
- (1) Jack, Switchcraft 1/4" Mono, Long Bushing
- (4) Pot, CTS 500k Audio (1/2" Bushing Length)
- (1) Switch, Switchcraft 3-Way Toggle, Right-Angle
- (2) Treble Bleed Kit for Humbuckers
- 2' Wire, 22AWG Cotton Push Back w/ Tinned Overcoat, Black
- 2' Wire, 22AWG Cotton Push Back w/ Tinned Overcoat, White
- 2' Wire, 22AWG Single Conductor Braided
- 2' Wire, 22AWG Stranded Silver-Plated Copper, Black PTFE
- 2' Wire, 22AWG Stranded Silver-Plated Copper, White PTFE
- Professional, Fully-Illustrated Wiring Diagram
Please note: knobs & switch tip are not included. There are just too many options - we sell 12 varieties of Gibson-style knobs sets. Each includes four knobs plus a Switchcraft switch tip. The knobs will fit the 24-tooth pots in this kit correctly, and the switch tip is the right part for the Switchcraft switch included in this kit. Gibson knobs & switch tips fit our parts properly, but imported knobs and switch tips don't. So if you have knobs/tip that came off an Epiphone or other imported guitar (Tokai, Burny, PRS CE, etc), then you're going to need knobs.

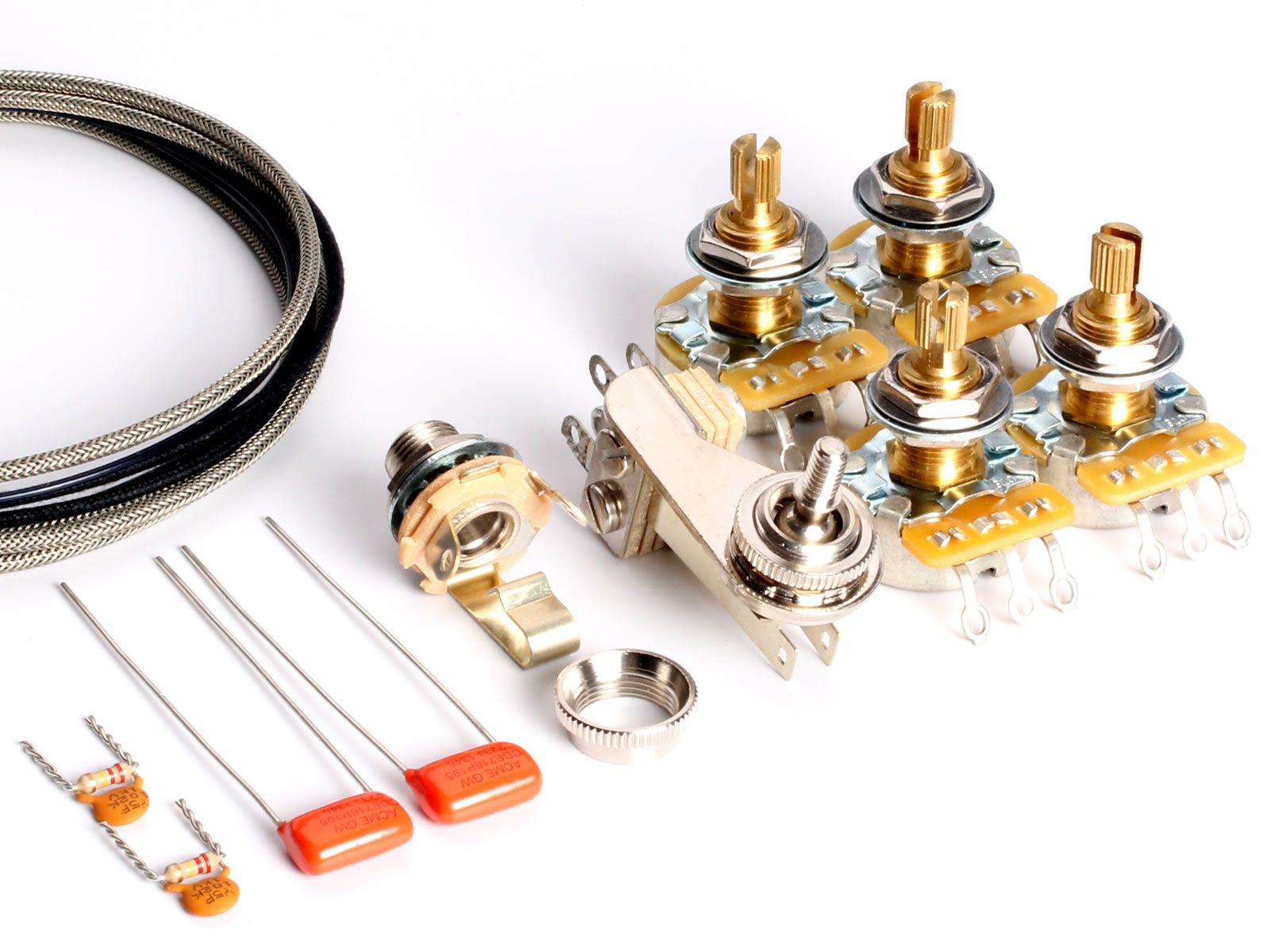

![ToneShaper Wiring Kit, Les Paul Special, Modern Wiring](http://toneshapers.com/cdn/shop/products/toneshapers-copyright-image-ts-wk-lpspcl-m-toneshapers-wiring-kit-les-paul-special-modern-wiring-1600-optimized.jpg?v=1660763025&width=1445)

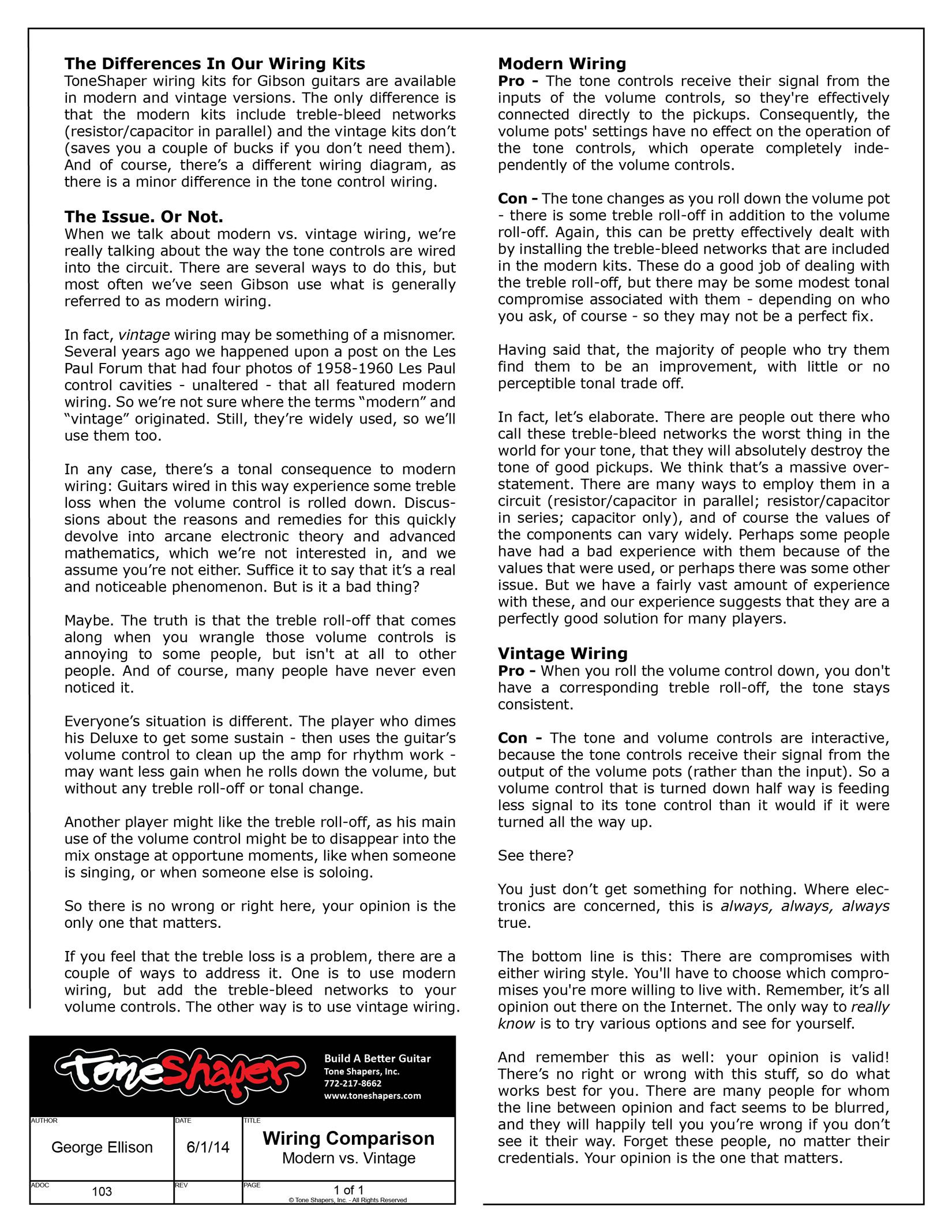

![Vintage vs. Modern Wiring](http://toneshapers.com/cdn/shop/products/toneshapers-general-modern-vintage-wiring-comparison-optimized.jpg?v=1660763039&width=1445)

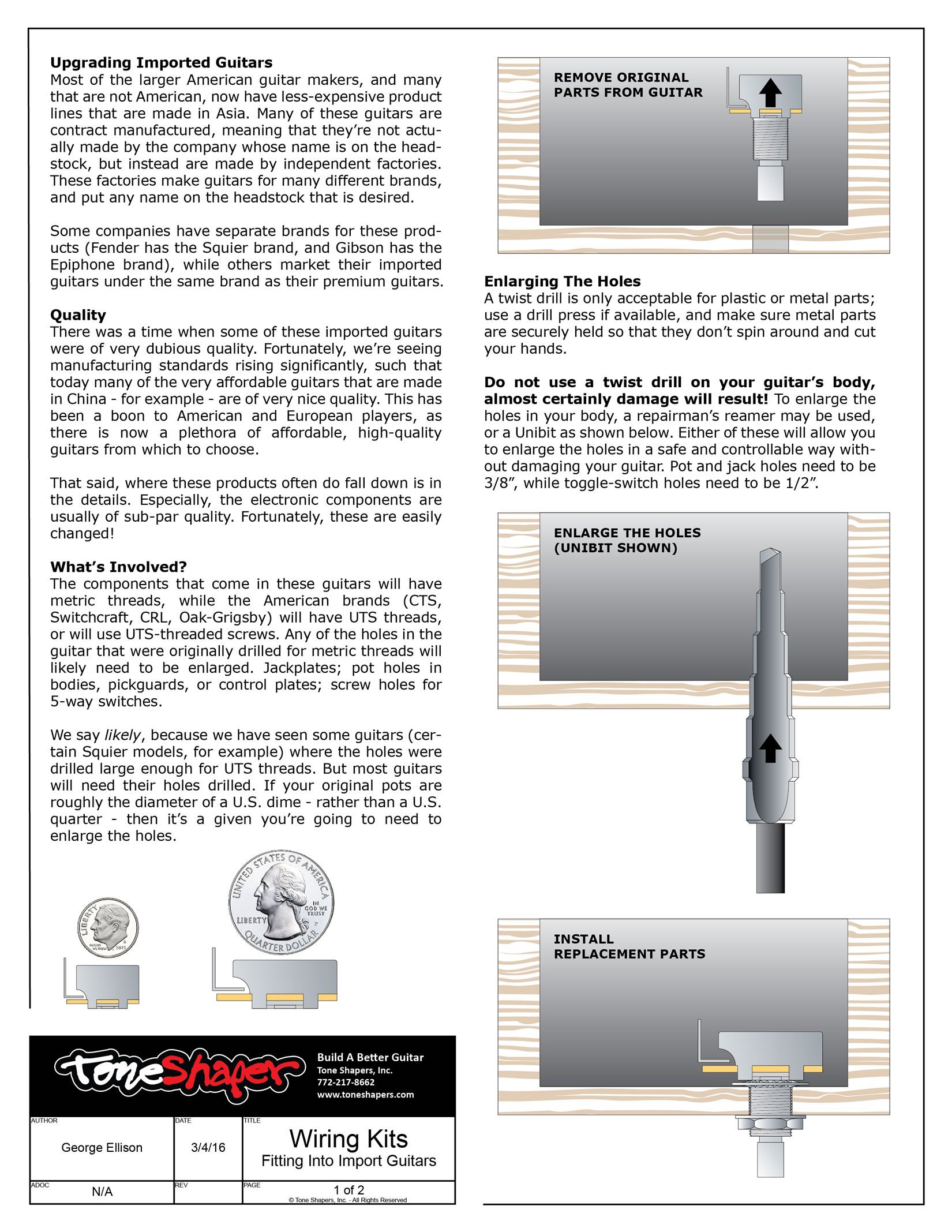

![Using Our Components in Imported Guitars (page 1)](http://toneshapers.com/cdn/shop/products/toneshapers-general-fitting-wiring-kits-into-import-guitars-optimized-1_3.jpg?v=1660763039&width=1445)

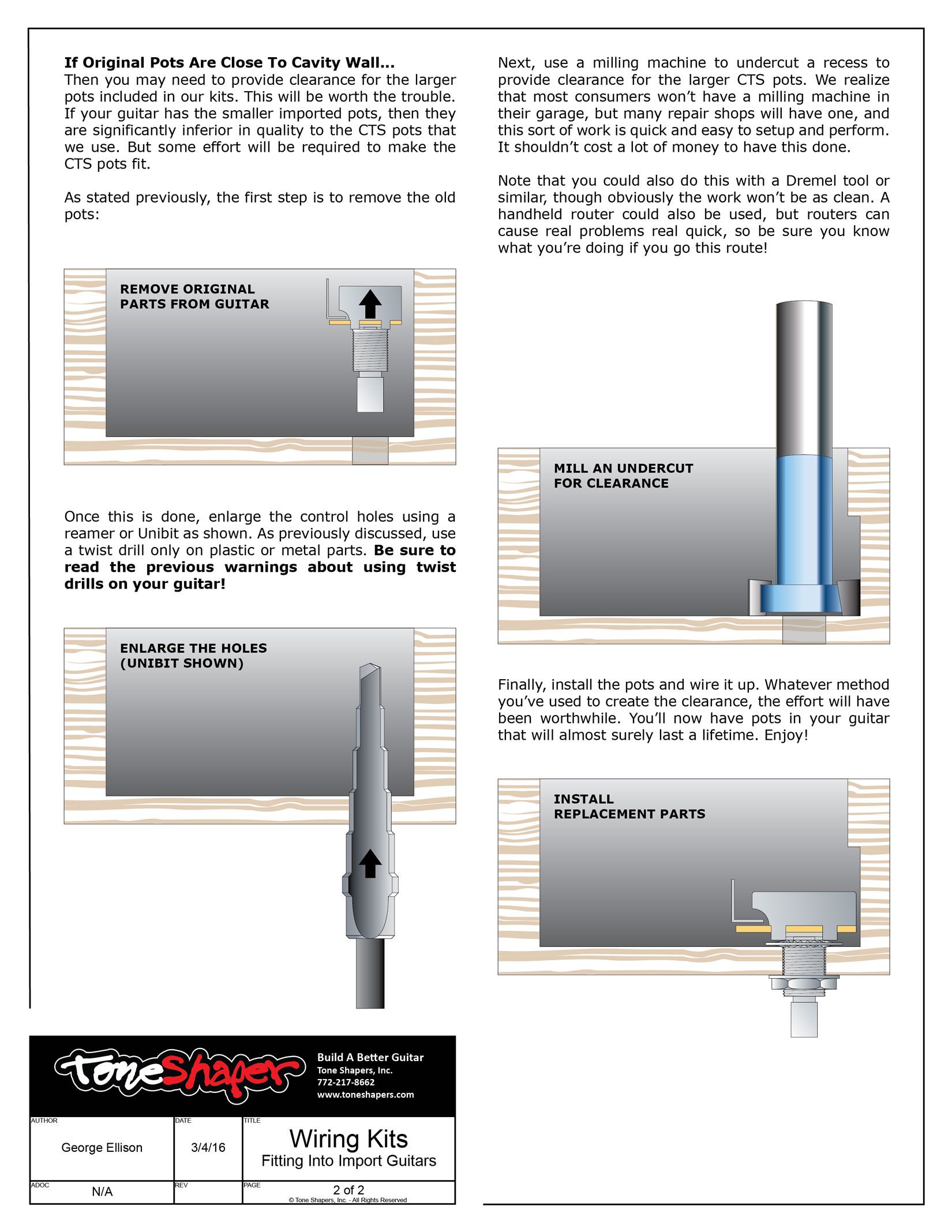

![Using Our Components in Imported Guitars (page 2)](http://toneshapers.com/cdn/shop/products/toneshapers-general-fitting-wiring-kits-into-import-guitars-optimized-2_3.jpg?v=1660763028&width=1445)
