  • ToneShaper Wiring Kit, Jazzmaster

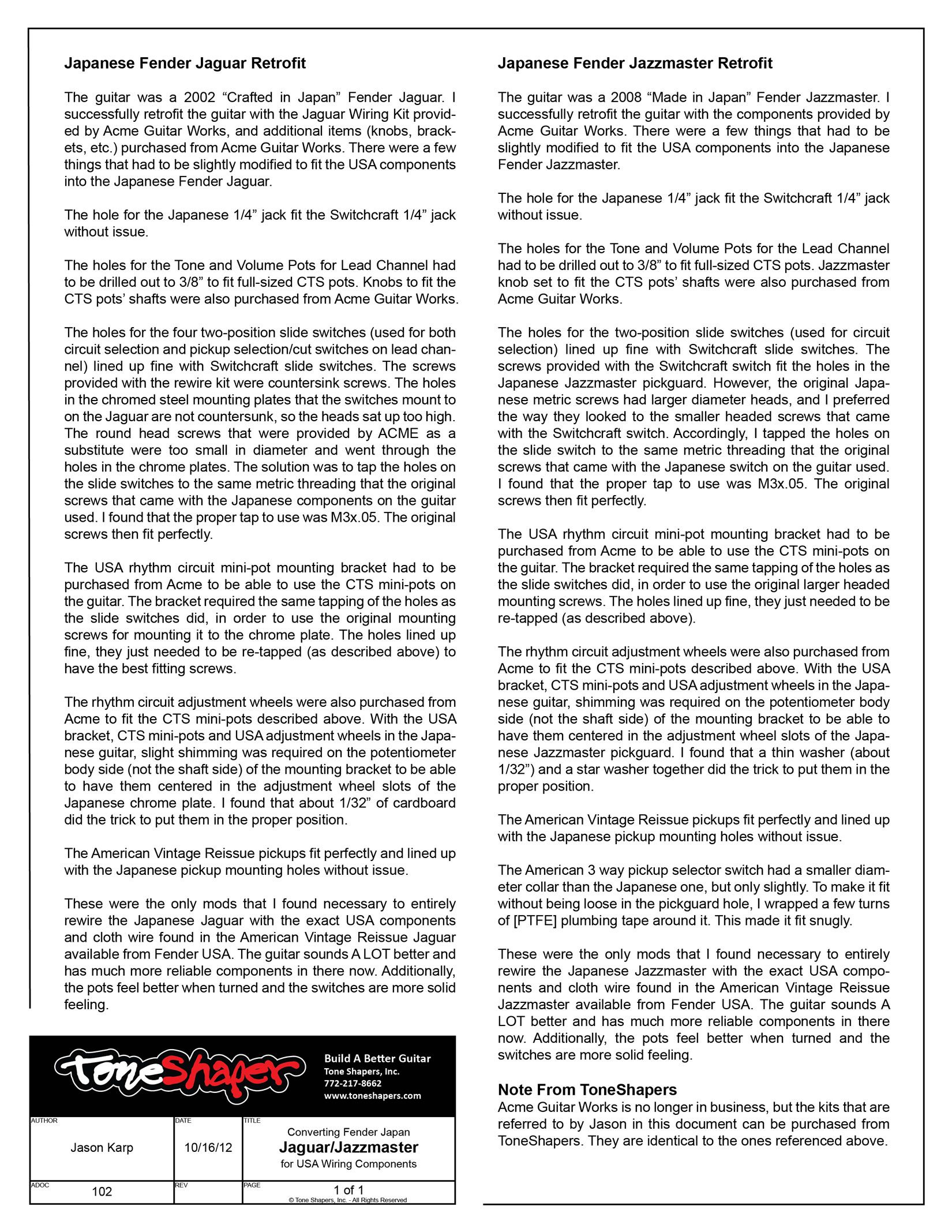

  • Japanese Jazzmaster Retrofit
1 3

ToneShaper

ToneShaper Wiring Kit, Jazzmaster

ToneShaper Wiring Kit, Jazzmaster

$75.99 USD
$75.99 USD
Sale Sold out
Shipping calculated at checkout.

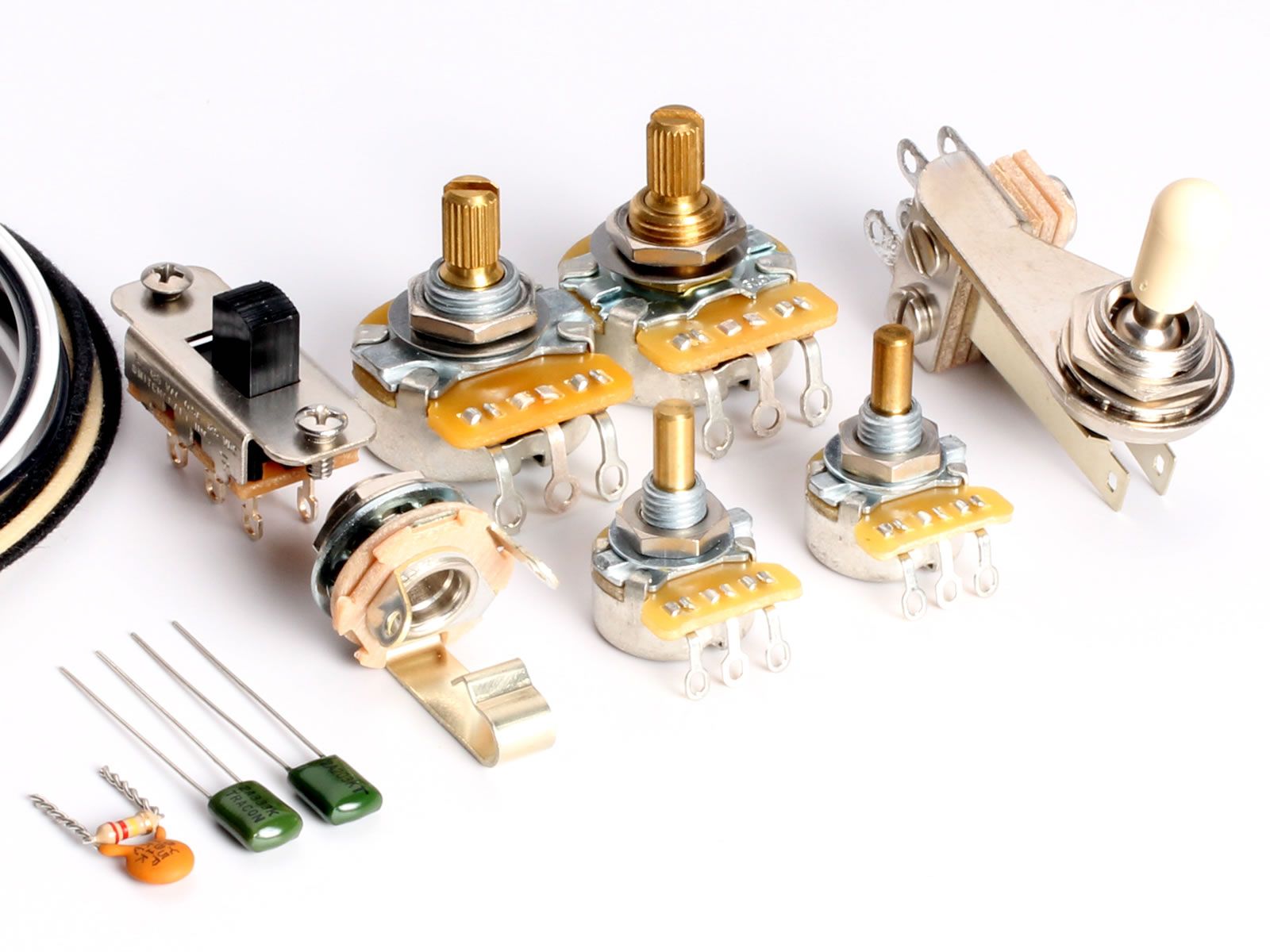

This kit includes everything you need to wire a Jazzmaster, using the same components you would find in a U.S. '65 Reissue Jazzmaster. We source the pots directly from Fender, so they're the right parts, unlike the pots that come in many other wiring kits. The rest of the components are the finest available, from the same suppliers that Fender has used for decades.

We do not include the roller knobs or the mounting bracket for the mini pots. Many people already have these, so no sense driving up the price of the kit with them. If you need them then we would suggest you buy the genuine Fender parts to ensure a proper fit. We sell the three parts as a kit (our P/N FKIT-4454), and we sell the parts individually as well. The following items are included with the kit:

  • (1) Capacitor, .022µF
  • (1) Capacitor, .033µF
  • (1) Jack, Switchcraft 1/4"" Mono
  • (1) Pot, CTS 1M Audio, Low Torque (1/4" Bushing Length)
  • (1) Pot, CTS 1M Linear, Low Torque (1/4" Bushing Length)
  • (1) Pot, CTS 1M Linear, Mini
  • (1) Pot, CTS 50k Linear, Mini
  • (1) Slide Switch, Switchcraft, Black
  • (1) Switch, Switchcraft 3-Way Toggle, Right-Angle
  • (1) Treble Bleed Kit for Single-Coils
  • 5' Wire, 22AWG Cotton Push Back w/ Tinned Overcoat, Black
  • 5' Wire, 22AWG Cotton Push Back w/ Tinned Overcoat, White
  • 5' Wire, 22AWG Stranded Silver-Plated Copper, Black PTFE
  • 5' Wire, 22AWG Stranded Silver-Plated Copper, White PTFE
  • Professional, Fully-Illustrated Wiring Diagram
View full details

Customer Reviews

Based on 8 reviews
100%
(8)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
D
Damien Martin
New build

Still completing a jm build. These arrived quickly and appear to be of high quality. So far I’ve only assembled the pots etc. Plan to solder next weekend.,

K
Kevin Moore
High quality kit with great sound

I purchased this kit because I was building an offset guitar clone and I wanted to wire it in a vintage Jazzmaster wiring harness. I had to purchase the rhythm circuit bracket and pots/switch as well. It was easy to wire, and has an amazing sound that was exactly what I was looking for. High quality all around. Recommended.

D
Dion

Simply the best!

D
David Patino
Great kit!

Used this kit to replace the electronics in my Squire Classic Vibe. Really good components and plenty of wire to get the job done. The instruction sheets it comes with are quite helpful for wiring reference. Be aware if upgrading a Squire, these pots have slightly bigger shafts on them. I'm using a custom pickguard so had no problem there, but the knobs were too small to fit on these new pots so needed to get some new ones sized for USA 24 spline pots.

J
John Dufala
Great Products - As per usual!

Folks, you never disappoint. I purchased a 4-way Tele kit, Tele dome knobs, and extra pushback wire from you earlier this year and this JM kit proved to be just as well thoughtout. The schematics and instruction sheets are perfect, lay out is easy to follow. Anyone looking for a replacement JM wiring kit, can't go wrong with ToneShapers!
One piece of advice: READ THE ENTIRE PRODUCT DESCRIPTION!!! I nearly missed the detail about the roller knob/mini pot mounting bracket not being included. Ordered an extra bracket to go with my wiring kit.
Could not be more pleased with my purchase. You guys rock!
